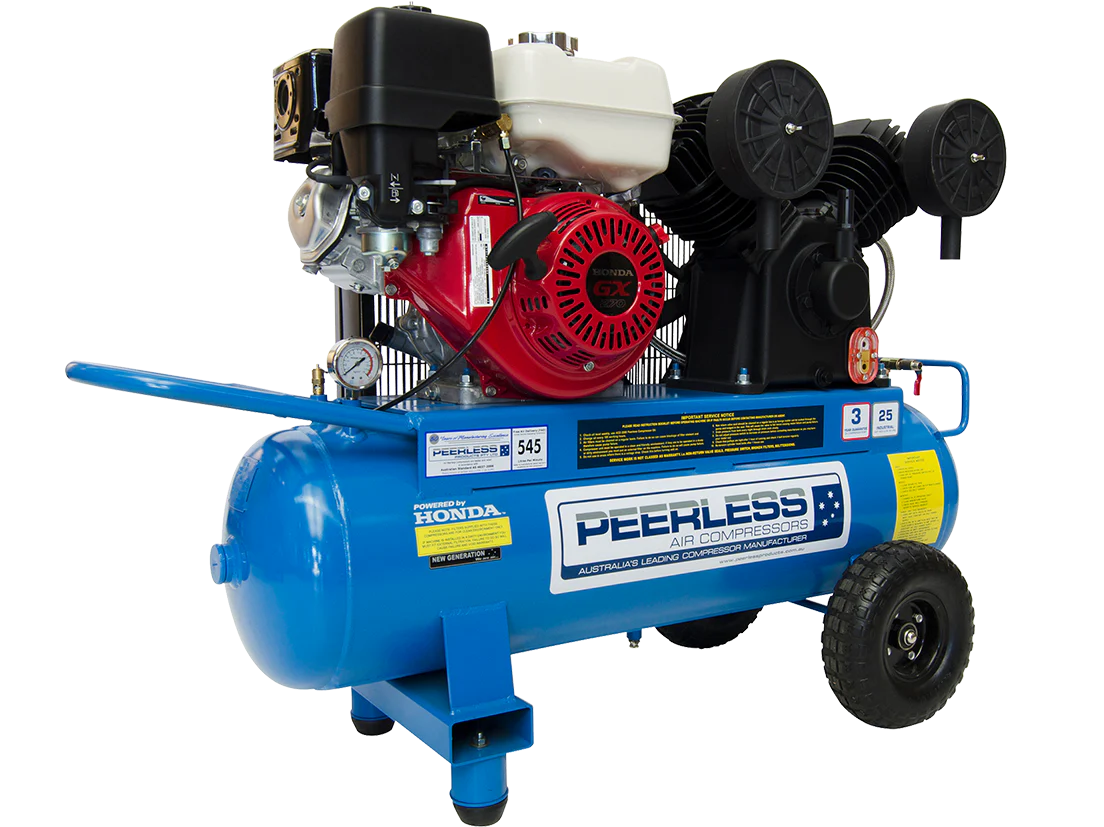

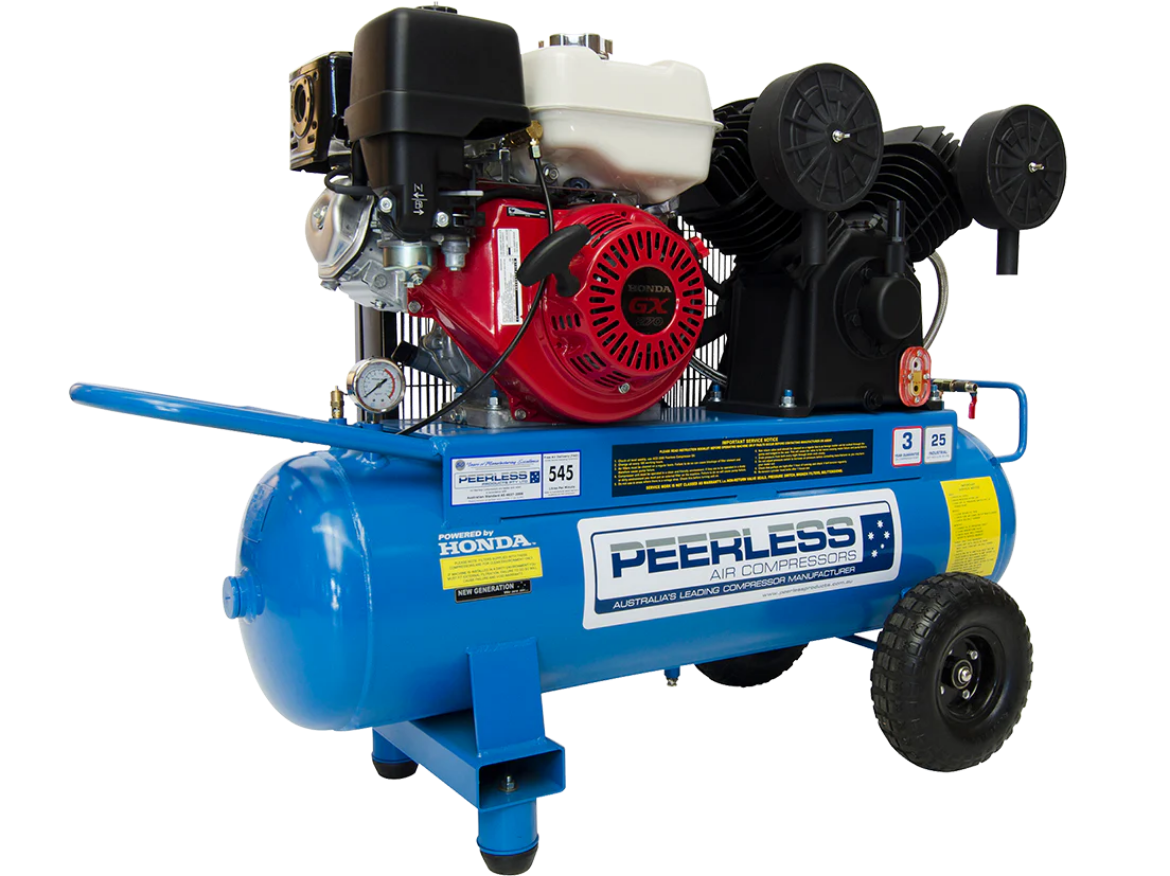

The PV25 is a V cast iron 9HP Honda air compressor. It gives a massive 545 litres of free air. It has a maximum operating pressure of 145PSI and out performs equivalent models on the market from 50 - 110 litres of free air. This model is one of the most popular petrol models on the market and is ideal for a 2-3 man workshop. Please refer to our flow chart when selecting a compressor that is right for you. Electric start optional extra.

Technical Specifications

• Pump Displacement (CFM): 25CFM
• Free Air Delivery (LPM): 545LPM
• Max PSI: 145
• Engine: Honda GX270
• Warranty Pump: 3 Years
• Warranty Engine: 3 Year
• Tank Capacity: 68L
• Pump up time to 100PSI: 0.45-0.50 Min
• Dimensions (mm): 1230L x 500W x 900H
• Weight (kg): 138kg
• Cooling Method: Air Cooled
• Pump Type: V90
• Cylinders: 2
• Pump Head Tension: 30 FT LB 40.67NM
• Oil Capacity: 1.5L
• Pump RPM: 1050
• Outlet Thread: 1/4"BSP & 1/2”BSP
• Engine Fuel Capacity: 5.3L
• Engine Oil Capacity: 1.1L 10W/30
