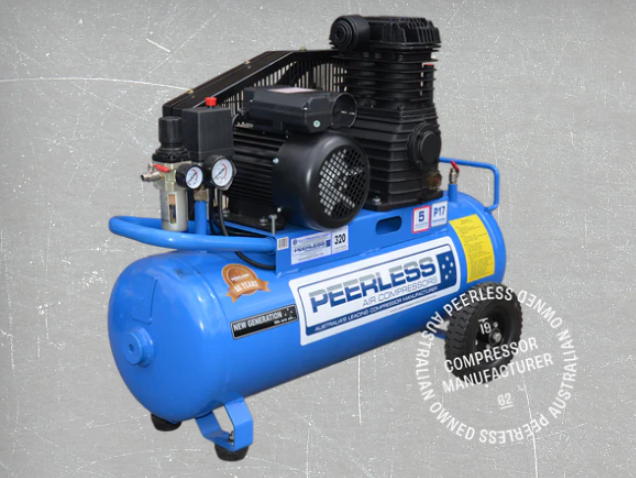

The P17 single phase air compressor is one of the biggest machines on a 15AMP plug producing 320 litres per minute of free air delivery.
Cast iron crankcase, stainless steel valves and a slow revving pump also makes this one of the quietest on the market. Our competitors are too scared to mention their pump RPM!
With a Smart Start filter supplied, this will help reduce the AMP draw on start up by letting the motor get up to RPM before sucking air through the inlet and helps reduce the load on the motor.
Comes with 2 outlets, one out from the water trap regulator and one directly out from the tank for full tank pressure. Built to last with solid puncture proof wheels. Having one of the largest warranties on the market, 5 Year Pump and 1 Year Motor Warranty this puts your mind at rest when investing in a quality product.
Due to its popularity the P17 also comes in a fatboy model and a vertical design, both featuring 110l tanks. When portability isn’t required both these option are perfect with an increased compressed air storage.
Able to run:
Low & high pressure spray guns
Car tyre inflation gun
Stapling / fitting gun
Framing nail / Grease gun
Chalking gun / Riveter gun
Pneumatic Screw driver
1/2” Ratchet gun
1/2” Impact gun
Air duster
4” Angle grinder
6” Orbital sander
Air drill
Engine cleaning gun
Sand blasting gun
Air hammer
Hi torque 1/2” Impact gun
1/4” Die grinder
Performance of all our belt driven air compressors are to AS4637.
Technical Specifications
- Pump Displacement (CFM): 17 CFM
- Free Air Delivery (LPM): 320 LPM
- Max PSI: 145
- Motor HP: 3.5
- Warranty Pump: 5 Years
- Warranty Motor: 1 Year
- Tank Capacity: 55L
- Pump up time to 100PSI: 1.00-1.15 Min
- Dimensions (mm): 1050L x 430W x 770H
- Weight (kg): 85kg
- Cooling Method: Air Cooled
- Pump Type: N75
- Cylinders: 2
- Pump Head Tension: 16 FT LB 22.4NM
- Oil Capacity: 1L
- Pump RPM: 963
- Outlet Thread: 1/4"BSP & 1/2" BSP
- Electricity: 240V/15A
- Amps Draw: 13
