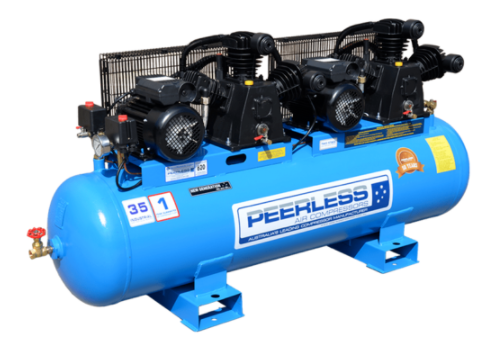

If you only have single phase power and require a large volume of air, this could be the solution for you. The Peerless PT35HP high pressure model is designed using two 2065T pumps and 3.5 HP motors. All fitted on a 190 litre air receiver.
The pumps are designed to restart 5 PSI apart and require two 15 Amp dedicated power plugs (draws 2 x 15 Amp) back to your fuse box to operate this machine. It is very important to ensure that this machine is wired correctly as failure to do so will cause motor failure.
Unlike its counterparts (PT30 & PT35 models) this is a high pressure air compressor being able to deliver volume of air at higher pressures. Well suited for truck tyre inflation.
The benefit of this air compressor is that its producing a massive 600 litres of free air per minute. But, if you are only cycling 1 motor and pump (continuous running and not stopping) without the secondary kicking in, you're wearing and over running the primary.
This is where you could use a single phase screw compressor to achieve a greater result.
When looking into this particular model, its always best to discuss with Peerless directly as we want to make sure the unit is a best fit for your applications.
On going servicing, alternating primary to secondary and secondary to primary is required to get equal wear.
Technical Specifications
- Pump Displacement (CFM): 33 CFM
- Free Air Delivery (LPM): 600 LPM
- Max PSI: 175
- Motor HP: 3.5
- Warranty Pump: 5 Years
- Warranty Motor: 1 Year
- Tank Capacity: 150L
- Pump up time to 100PSI: 1.50-1.55 Min
- Dimensions (mm): 1770L x 400W x 880H
- Weight (kg): 205kg
- Cooling Method: Air Cooled
- Pump Type: 2065T
- Cylinders: 3
- Pump Head Tension: 12 FT LB 16.27NM
- Oil Capacity: 1375mL
- Pump RPM: 1132
- Outlet Thread: 1/4"BSP
- Electricity: 240V/15A
- Amps Draw: 13
