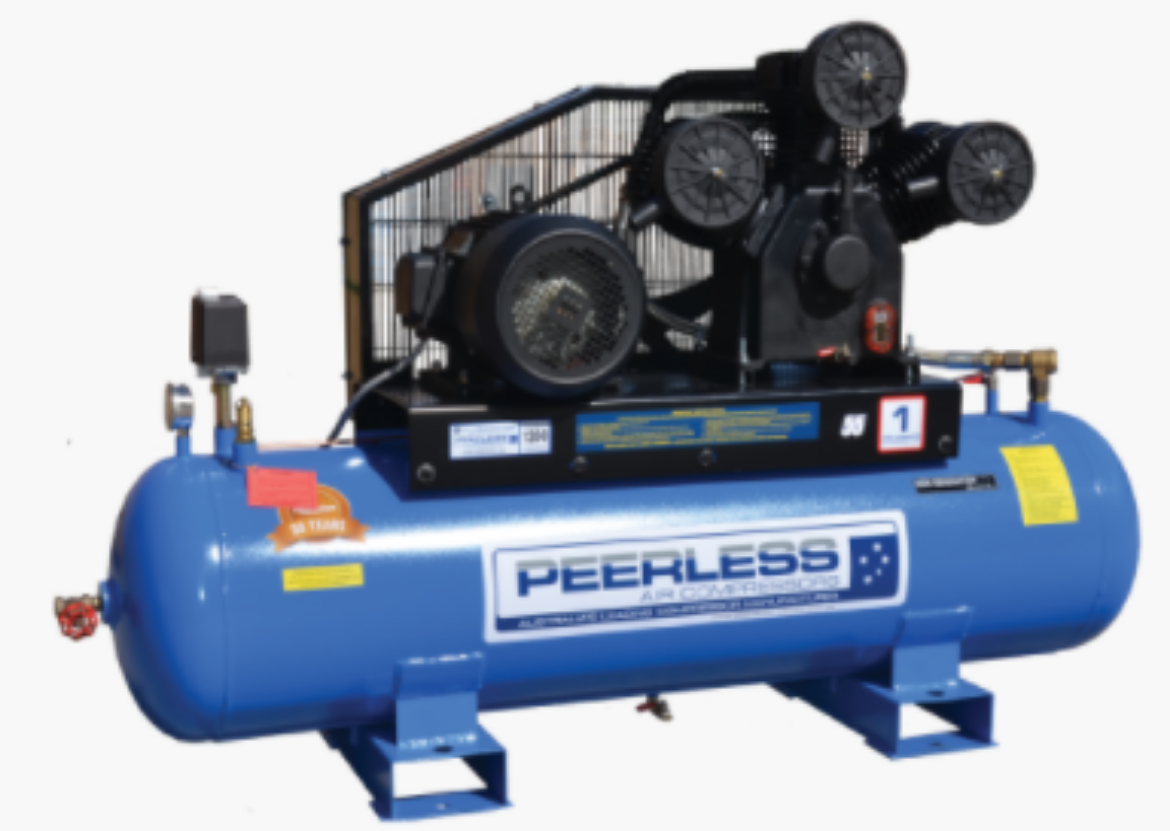

Offering a massive 1300LPM free air delivery at 100PSI the P55 High Flow is suited for applications where large quantities of air is required.

To achieve this volume of air the unit features a single stage W95 Pump. Three low pressure heads that intake large volumes of air, unlike the 2 stage pump found on a PHP52 model. Due to this trade off the P55HF is capable of producing a larger volume of air at a lower pressure with a maximum pump pressure of 145PSI.

We recommend this compressor to workshops with around 5 - 6 operators and is ideal for mechanics and tyre fitters. If you require clean and dry air we have a complete range of refrigeration air dryers and inline filtration to keep your equipment in the best working order.

If you require more air we recommend upgrading to our rotary screw compressor range. The air performance along with energy efficiency with variable speed technology can save your business time and money. It's all about the increased productivity, no down time and energy cost reductions. If you're unsure about what's best to suit your business, we're here to help. A Peerless specialist will tell you if it would be beneficial or not to look at the screw compressor option.

Helpful tip:

When mounting, be sure to get "high density" rubber matting and then fix to a secure footing as per your states regulations. Remember, when installing allow enough space for the air compressor to breath, air flow is forced over the pump to keep it cool. If mounted hard up against a wall or boxed, it will have trouble getting the correct air circulation.

All pressure vessels can be supplied with a "Manufacturing Data Report" along with "Registered Design" for Work Safe registration.
Peerless Products pressure vessels are all made to AS1210.

Performance of all our belt driven air compressors are to AS4637.

Technical Specifications

• Pump Displacement (CFM): 55 CFM
• Free Air Delivery (LPM): 1300LPM
• Max PSI: 145
• Motor HP: 10
• Warranty Pump: 1 Years
• Warranty Motor: 1 Year
• Tank Capacity: 200L
• Pump up time to 100PSI: 0.55-1.00 Min
• Dimensions (mm): 1700L x 500W x 1100H
• Weight (kg): 260kg
• Cooling Method: Air Cooled
• Pump Type: W95
• Cylinders: 3
• Pump Head Tension: 35 FT LB 47.45NM
• Oil Capacity: 2.3L
• Pump RPM: 949
• Outlet Thread: 1/4" BSP & 1/2" BSP
• Electricity: 415V
• Amps Draw: 16.2
