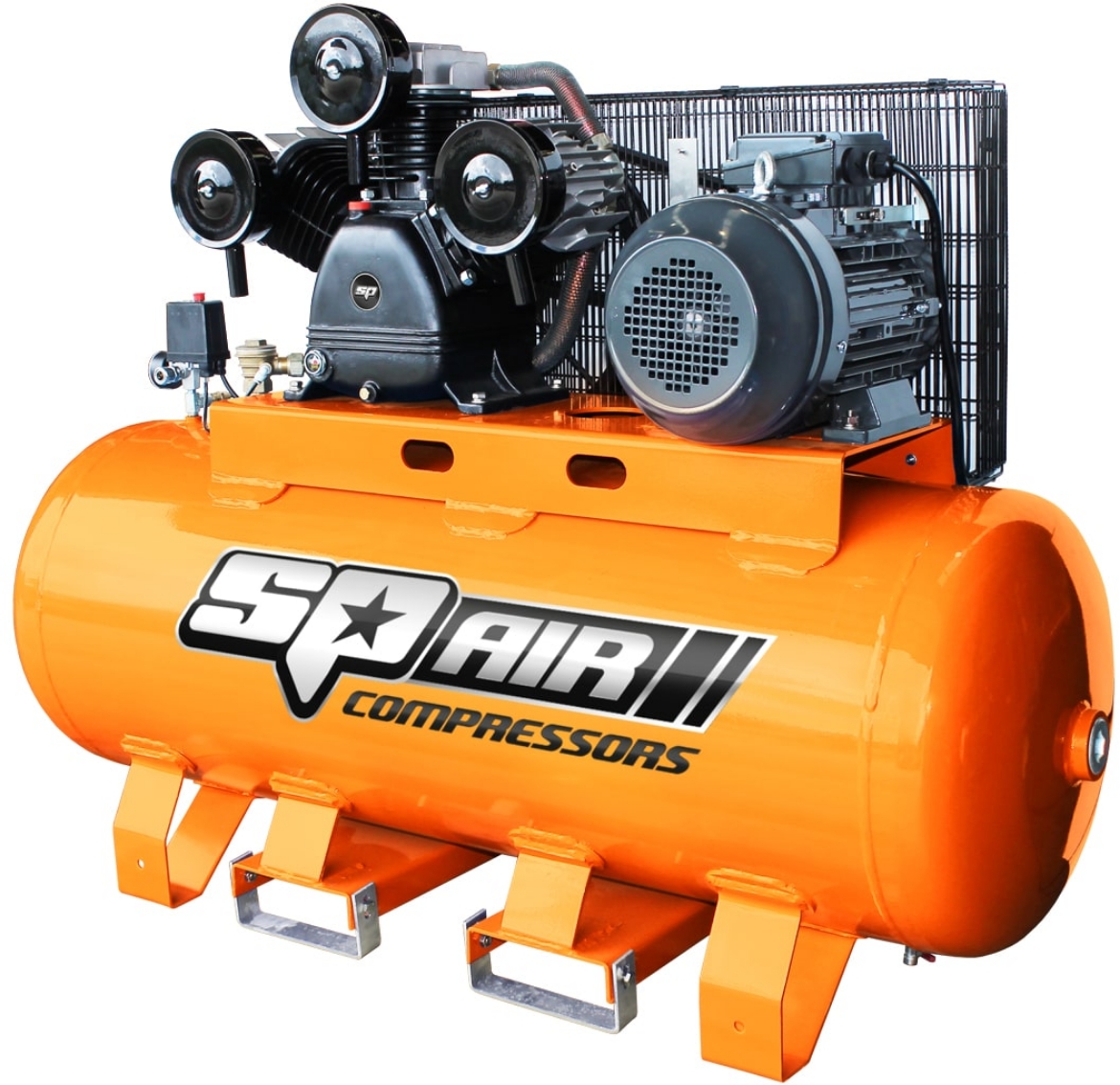

Pump Size:

10Hp 3 Phase Belt Drive

Tank Size:

270L

Free Air Delivery (FAD):

1360 L/min

Max Operating Pressure:

150PSI

Voltage:

3 Phase 415Volts/50Hz 18amp per PH

Unit Weight:

254Kg

Unit Dimensions:

1630(L) x 630(W) x 1360(H)mm

Accessories Included:

Filter/Regulator

One-touch (Nitto style) connector

• High efficiency induction motor

• Full brass non-return valve

• Independent 3 phase switch box operates by a single phase pressure switch

• Copper delivery pipe

• Certified safety valve

• Large oil level sight glass

• Copper wound motor

• Cast iron cylinders

• Resettable overload protection
