- Wheel Diameter: 200mm
- Castor Frame Type: Swivel with Swivel Lock and Brake
- Wheel Width: 50mm
- Wheel Type: Polyurethane
- Wheel Code: PU849
- Wheel Bearing Type: Ball Bearing
- Castor Height: 248mm
- Swivel Radius: 155mm
Maximum Load Capacity: 500kg
Recommended Load Capacity: 450kg
The 500 Series is designed and manufactured for heavy duty applications including low speed, medium weight towing up to a maximum speed of 6kph. A sealed precision machined ball race ensures the swivel movement is kept clean and smooth. Complete with a high tensile kingpin to withstand high impact side loads, Richmond’s 500 Series moves high demand industries such as; Automotive, Rapid moving production lines and steel manufacturer’s due to the reliability and performance of this robust castor.

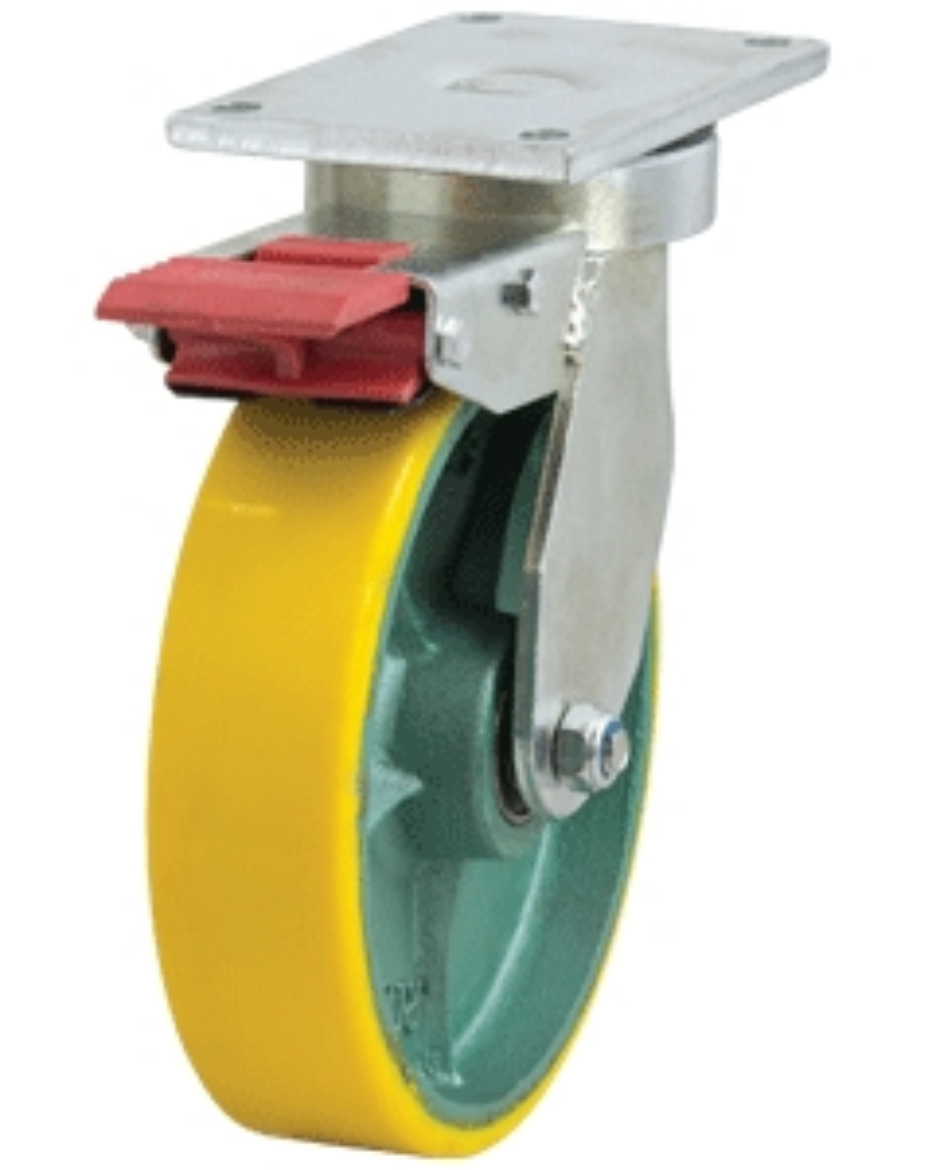

The S8470SLB by Richmond is a swivel frame castor and features a polyurethane tyred cast iron wheel. This swivel castor is one of our 500 series range and has a top load capacity of 500kg. The S8470SLB is assembled with ball bearings on the castors axle. The swivel frame design of this castor allows for full 360° swivel rotation. The diameter of the polyurethane tyred cast iron wheel is 200mm, the wheel width is 50mm and you can order separately (Part Number: PU849).
