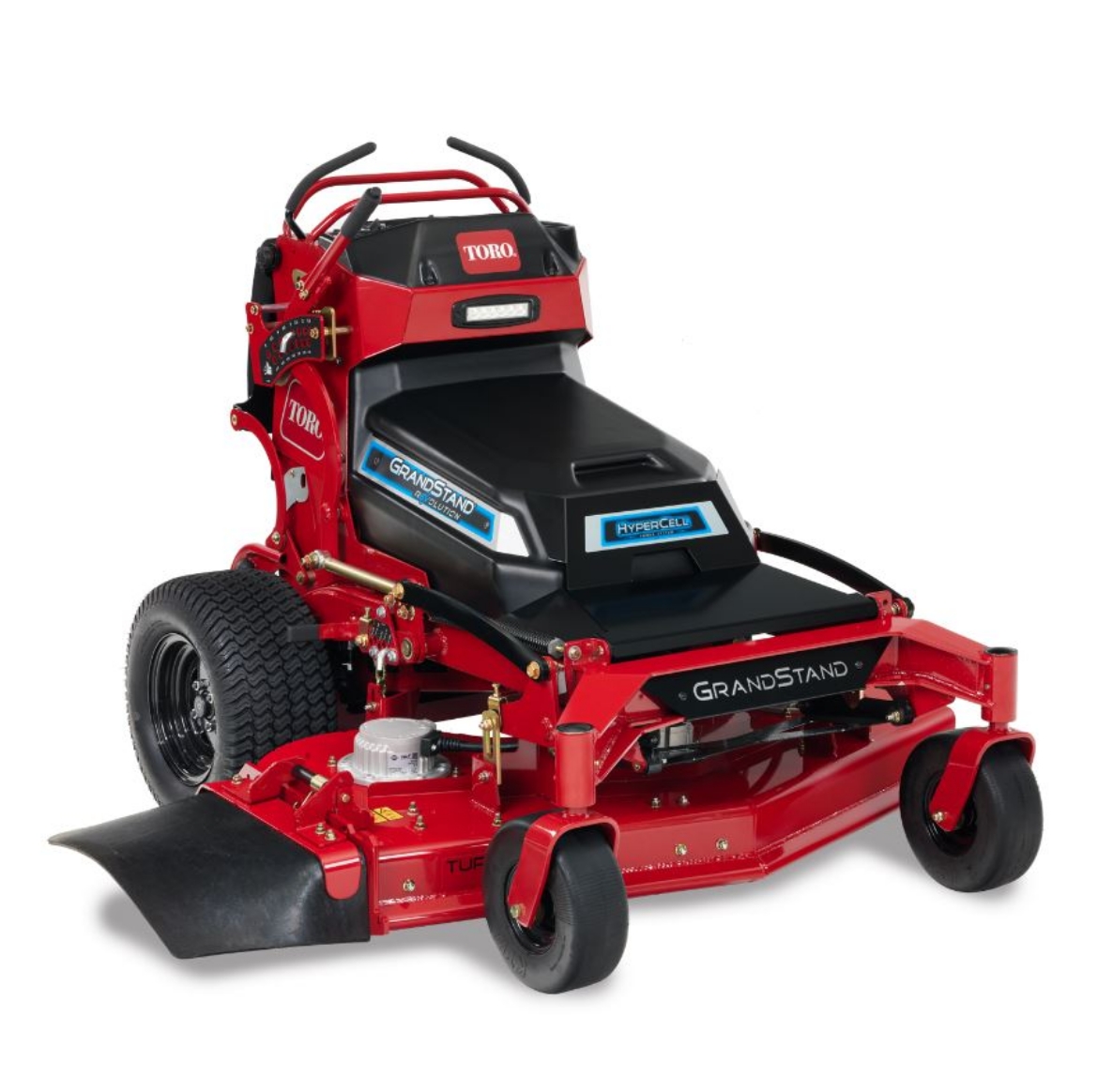

The future of lawn care and your business is here. The new Revolution Series 52 inch GrandStand® is built on the same proven GrandStand chassis and TURBO FORCE® deck that you’ve trusted for years but with a quieter, eco-friendlier design to deliver lower overall cost over the machine’s lifetime.
Powered by Toro’s HyperCell® Power System®, the Battery Management System (BMS) allows for longer run times and quick charging to maximise productivity. HyperCell® is built to run cooler than other power systems for long-lasting efficiency. With all-day runtime from the Toro developed HyperCell® battery system, you can expect to power through your day, every day.
The patent pending software in the drive-lever controls enables smooth, reliable handling.
FEATURES
Patent-Pending Software Controls
Optimise machine feel and response, including speed control, with patent-pending software controls.
Hypercell® Lithium Ion Battery All Day Runtime
Toro's Hypercell® Battery is designed to operate with the machinery and meet landscaper needs.
Deck Rake Adjustment
Optimise run time and quality of cut with the adjustable deck rake.
TURBO FORCE® Cutting Deck
The Toro Z Master® Revolution is built on the same proven Z Master® chassis and TURBO FORCE® deck you’ve trusted for years, but with a quieter, eco-friendlier design to deliver lower overall cost over the machine’s lifetime. The fabricated shell is constructed of 7-gauge fully welded high-strength steel with bull-nose bumper which protects against frontal impacts.
SPECIFICATIONS
Battery | Toro HyperCell Battery Quantity: 8 Battery Capacity: 18.4 kWh Run Time: 4 - 7+ hours Charge Type: 1.2 kW 120V Charge Time: 12 hours |
Transmission | Planetary Gearset |
Cutting Width | 132 cm |
Deck Design | 7-gauge TURBO FORCE® |
Spindle Housing | 22.9 cm diameter die-cast aluminium w/ blade retainer |
Height of Cut | 3.8 cm - 12.7 cm in 6.4 mm increments |
Blade Type | 5.18 mm heat-treated steel |
Discharge Chute | Rubber |
Caster Tyres | 27.9 x 10.2 - 12.7 cm flat-free semi-pneumatic |
Drive Tyres | 50.8 cm x 25.4 cm - 25.4 cm Super Turf |
Ground Speed | up to 16.1 km/h forward |
Hour Metre | Standard |
Lighting | LED Lights Standard |
Steering Controls | Twin lever |
Warranty* | 5-Year / 1200-Hour^ (no hour limit in the first 2 years) ^Whichever occurs first. *See your certified Toro dealer for full details on warranties. |
