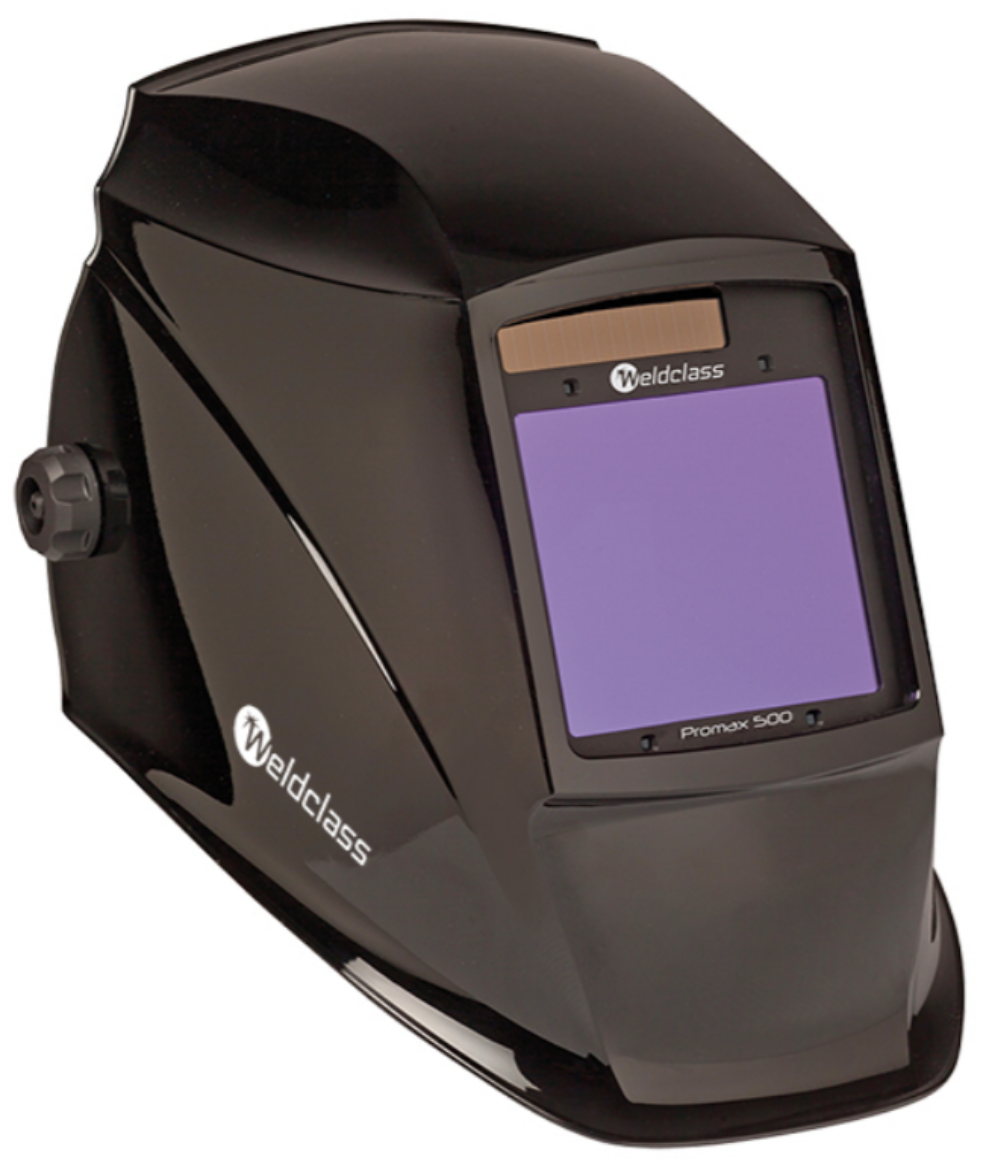

HELMET PROMAX 500 BLACK STEALTH WELDCLASS

$199.00 Inc. GST

PRICE BREAKS - The more you buy, the more you save

Quantity

Price

$189.05

$179.10

| Be the first to review this product

Availability: 5 in stock

Manufacturer: WELDCLASS

SKU: WC-05317

increase decrease

Overview
Contact Us

Weldclass PROMAX 500 Black Wide View Auto Welding Helmet - WC-05317

The auto-darkening welding helmet with Super Size Viewing area & more value than you can poke a MIG, TIG or Stick at! PROMAX 500 stand-out features include; Massive 98x87mm Viewing area, 4 sensors for reliable switching, Dual Shade 5-8/9-13, Sensitivity & Delay Adjustments, Grind-Mode switch, Replaceable Battery, Magnification Lens Holder & more. Comfortable, lightweight & superior optics.

Applications

Ideal for MIG, Stick & TIG welding down to 5 amps
For professional & Industrial Applications

Features

Super-size Viewing Area of 98 x 87mm
4 Arc Sensors: for reliable arc detection & switching
Reliable Power Source: Replaceable battery, solar assist, efficient electronics for low power consumption
Ultra Clear Vision
Magnification Lens Holder
Light Weight & Comfortable
AS1337.1 High-Impact Rated: A must for many work sites
Grind-Mode: Locks the lens in light shade at the flick of a switch
Shade, Sensitivity & Delay Adjustments: Precise & easy-to-use controls
Dual Shade Range 5-8 / 9-13 plus grind mode to cover a wide range of welding processes
Auto-darkening lens complies with AS1338.1
'Hinge & Lock' Lens Retainer System = Easy cover lens replacement, Seals tightly against spatter to prevent damage to electronic lens
Full Laminate' Lens Construction: Each layer in the electronic lens assembly is firmly laminated for superior optical quality & long service life. This is in contrast to cheaper lenses which are simply glued on the edge and, over time, are prone to contamination & failure
Auto-on & Auto-off = No buttons to press, Hassle-Free operation

Specifications

Suitable Welding Processes	MIG, MMA/Stick & TIG (≥5 amps), Grinding, Plasma Cutting, Oxy Cutting & Brazing
Suitable Applications	Industrial fabrication, Part time & full-time welding, maintenance welding, etc
Switching Speed	Conforms to & exceeds requirements of AS/NZS 1338.1 Standard
Arc Sensing	4 Sensors
TIG Optimised	Yes. Suitable for low-amp TIG down to 5 amps
Power Supply	1 x CR2450 replaceable battery & Solar assist
On / Off	Ready to use at any time, no switching required
Inactive Shade (Grind/Off)	Shade 4
Active Shade (Weld)	Dual range 5-8 / 9-13
Sensitivity	Low – High
Delay	0.1 – 1.0 seconds
Grind Mode	Switchable On/Off
Weight	560g
Viewing Area	98 x 87mm
Cover Lens - Inner	115 x 92mm – Part No. WC-05322
Cover Lens – Outer	137 x 117mm- Part No. WC-05324
Magnification Lens Holder	Takes standard 108x51mm Magnification Lenses
Standards Compliance	Lens: AS/NZS1338.1, EN379, ANSI Z87.1, CSA Z94.3 \| Shell: AS/NZS1337.1 High Impact EN 175 B, ANSI Z87.1, CSA Z94.3
Optical Rating	1/1/1/2 (Optical quality / Diffusion of light / Variation in luminous transmittance / Angle dependency)
Temperature Range	Operating -5°C to +55°C / Storage -10°C to +65°C
