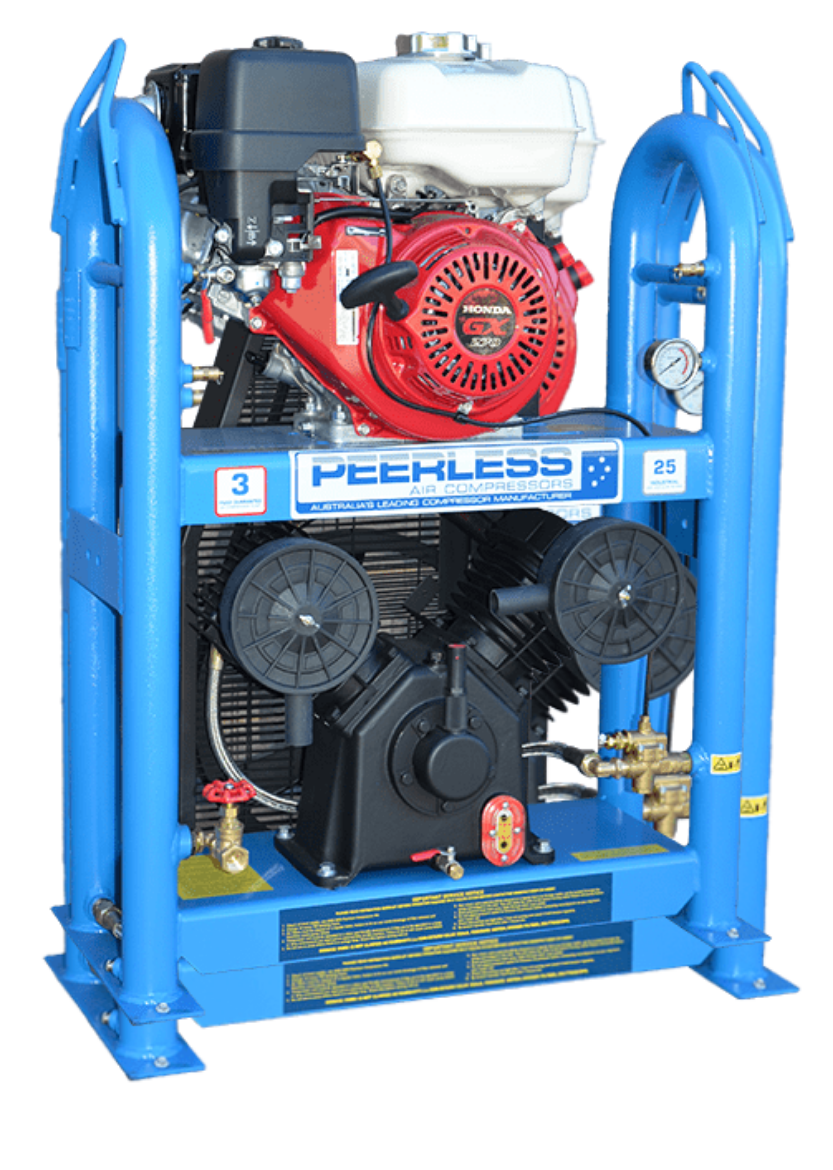

The PV25 is a V cast iron 9HP Honda air compressor. It gives a massive 545 litres of free air. It has a maximum operating pressure of 145PSI and out performs equivalent models on the market from 50 - 110 litres of free air. This model is one of the most popular petrol models on the market and is ideal for a 2-3 man workshop. Please refer to our flow chart when selecting a compressor that is right for you. Electric start optional extra.
Under / Over
The under & over model is extremely popular for saving space in the back of service vehicles or trailers. The greatest advantage of these and the tube models is their quick recovery time within 6 seconds you are back to full pressure and there is not much sense in pumping up a large air receiver before you pump up your tyres.
Electric start engine does not come with battery, leads or provisions for battery.
We can manufacture to your design plus there are other standard designs for each model.
Performance of all our belt driven air compressors are to AS4637.
Technical Specifications
- Pump Displacement (CFM): 25 CFM
- Free Air Delivery (LPM): 545 LPM
- Max PSI: 145
- Engine: Honda GX270
- Warranty Pump: 3 Years
- Warranty Engine: 3 Year
- Tank Capacity: 5L
- Warranty Pump: 5 Years
- Warranty Motor: 3 Years
- Warranty Tank: 10 Years
- Dimensions (mm): 750L x 420W x 1000H
- Weight (kg): 130kg
- Cooling Method: Air Cooled
- Pump Type: W90II 2 Stage
- Cylinders: 3
- Pump Head Tension: 30 FT LB 40.67NM
- Oil Capacity: 1.5L
- Pump RPM: 1190
- Outlet Thread: 1/2" BSP
- Engine Fuel Capacity: 5.3L
- Engine Oil Capacity: 1.1L 10W/30
