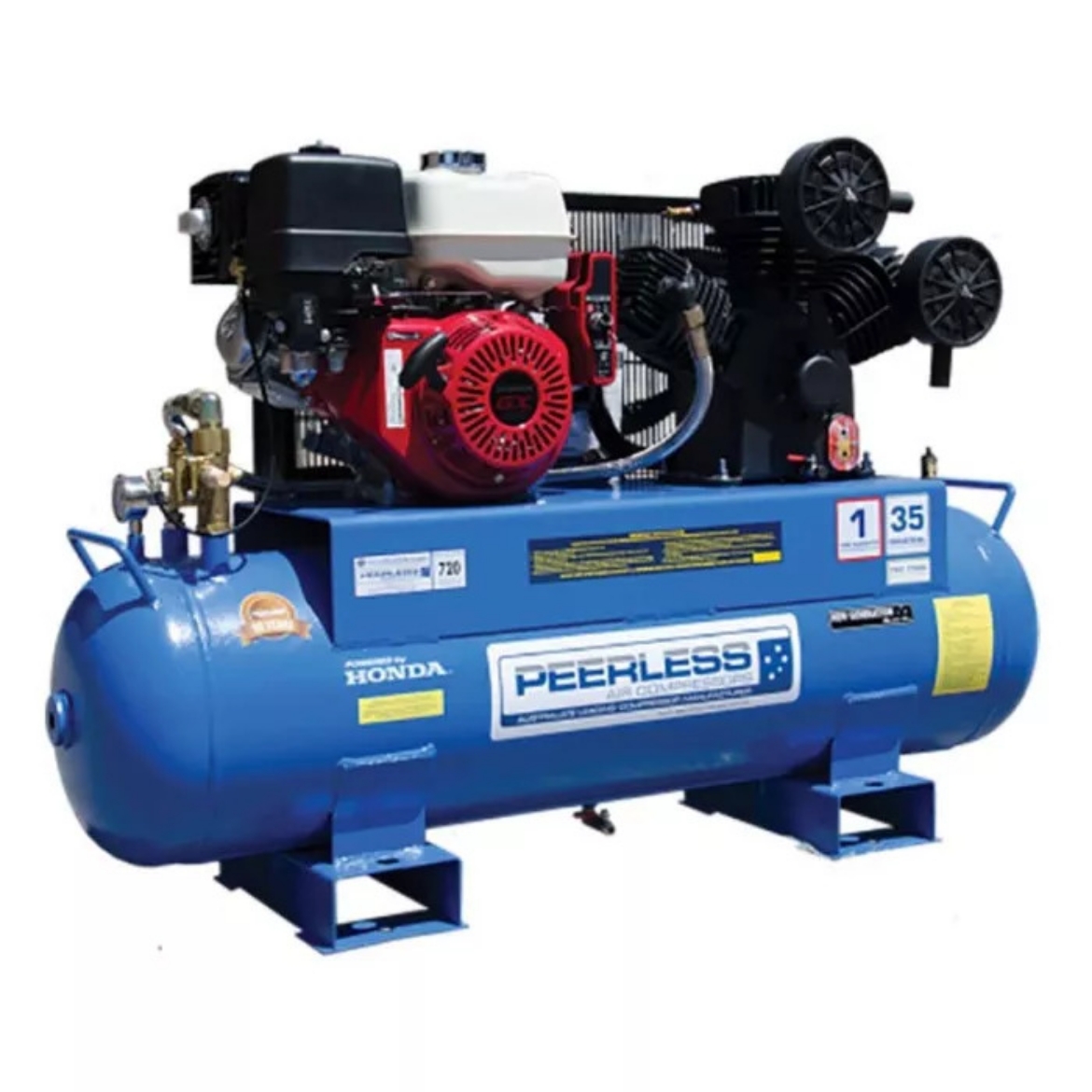

This Stationary High Pressure Honda Petrol unit is ideally suited where high volumes of air are required. e.g. post hole driving, full tyre inflation for trucks and tractor or for multiple outlets. Electric start standard. Please call Peerless for a quote.
Electric start engine does not come with battery, leads or provisions for battery.
We can manufacture to your design plus there are other standard designs for each model.
Technical Specifications
- Pump Displacement (CFM): 35 CFM
- Free Air Delivery (LPM): 720 LPM
- Max PSI: 175
- Engine: Honda GX270
- Warranty Pump: 1 Year
- Warranty Engine: 3 Year
- Tank Capacity: 150L
- Pump up time to 100PSI: 1.35-1.40 Min
- Dimensions (mm): 1490L x 485W x 965H
- Weight (kg): 197kg
- Cooling Method: Air Cooled
- Pump Type: W90II Triple Head
- Cylinders: 3
- Pump Head Tension: 30 FT LB 40.67NM
- Oil Capacity: 1.5L
- Pump RPM: 790
- Outlet Thread: 1/2" BSP
- Engine Fuel Capacity:6.1L
- Engine Oil Capacity: 1.1L 10W/30
