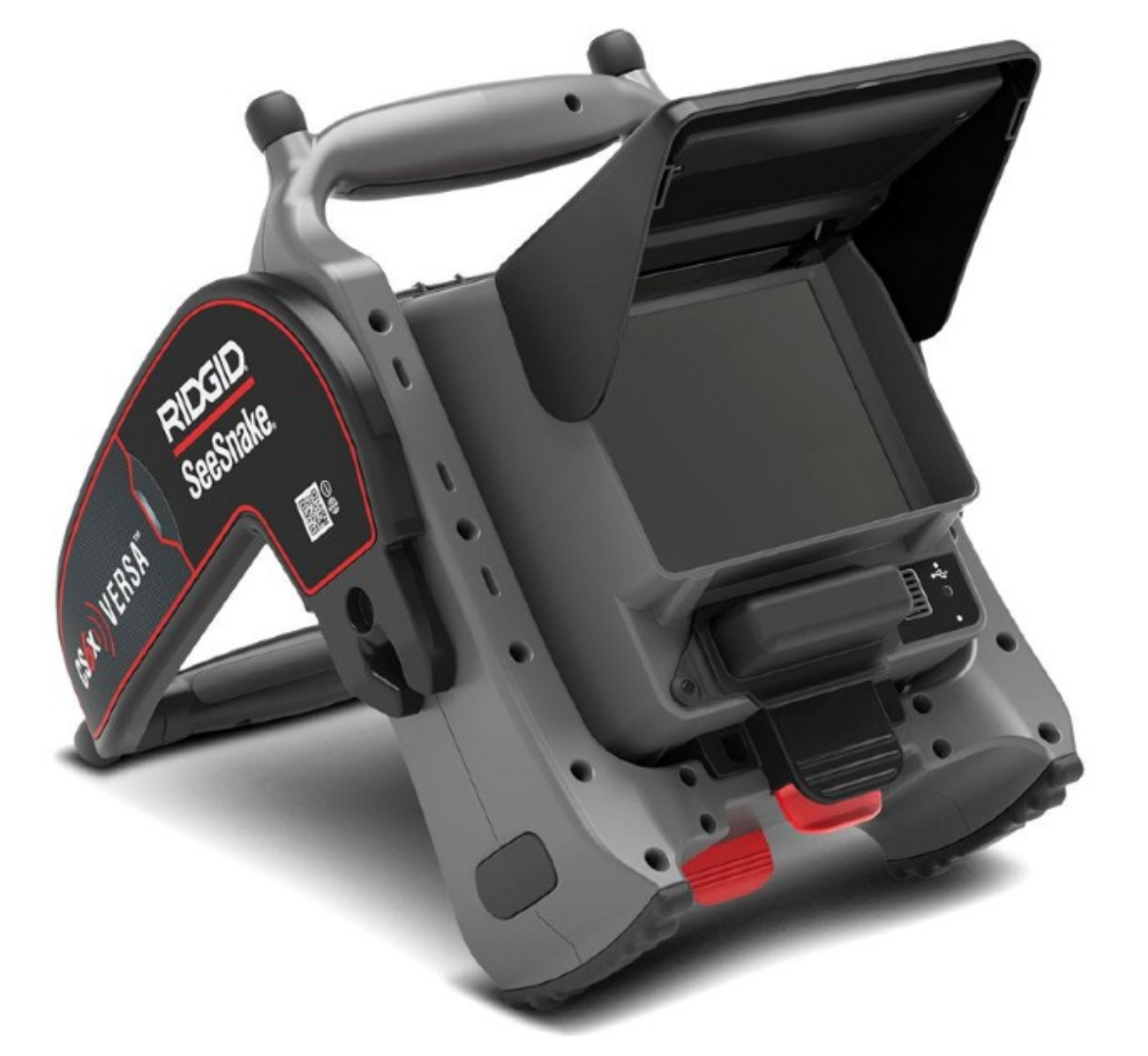

RIDGID CS6X VERSA DIGITAL REPORTING MONITOR

Improving jobsite ergonomics, the CS6x Versa has high and low monitor mounting positions and a unique pivoting frame that lets users tilt the monitor to the desired angle for optimal viewing efficiency. This design allows the sunshade to remain open in all usage situations for maximum glare reduction.

• Improving jobsite ergonomics, the CS6x Versa has high and low monitor mounting positions and a unique pivoting frame that lets users tilt the monitor to the desired angle for optimal viewing efficiency. This design allows the sunshade to remain open in all usage situations for maximum glare reduction.
• The CS6x Versa has a 5.7” daylight viewable screen, direct USB recording, full TruSense™ compatibility, and Wi-Fi connectivity for remote viewing and recording on a phone or tablet.
• The frame docks to the Compact 2/C40/M40 and can be used mounted or unmounted.
• Pivoting frame with high and low mounting positions allow flexible placement and optimal viewing
• Docks to the Compact 2/C40/M40 camera reels for efficient transport, storage, and operation
• Operates on one 18 V battery or with the included AC power adapter
• Improved ingress protection against dust and moisture

Specs:

• Power source: 18V Battery (not included) or AC adapter
• Power rating: 15-25VDC, 25W
• Display: Type-Colour LCD, Size-145mm, Resolution-VGA 640 x 480 pixels, Brightness-460cd/m²

• Media: Standard video-MPEG4 (H.264), Autolog video-MPEG4 (H.264) Low, variable frame rate for decreased file size, Photo- JPG, PhotoTalk-MPEG4 (H.264) Single image with audio commentary, Audio-Integrated microphone and speaker

• Transfer method: 2.0 USB
• USB port: 1 x 1.5A
• Connectivity: Bluetooth- 4.0, Wi-Fi-802.11 a/b/g/n

• Operating environment: Temperature -10°C to 50°C, Storage temperature -10°C to 70°C, Ingress protection-IPx5, Relative humidity-5 to 95%, Altitude-4000m

• Dimensions (L x W x H): 332mm x 233mm x 309mm
• Weight: 2.2kg
