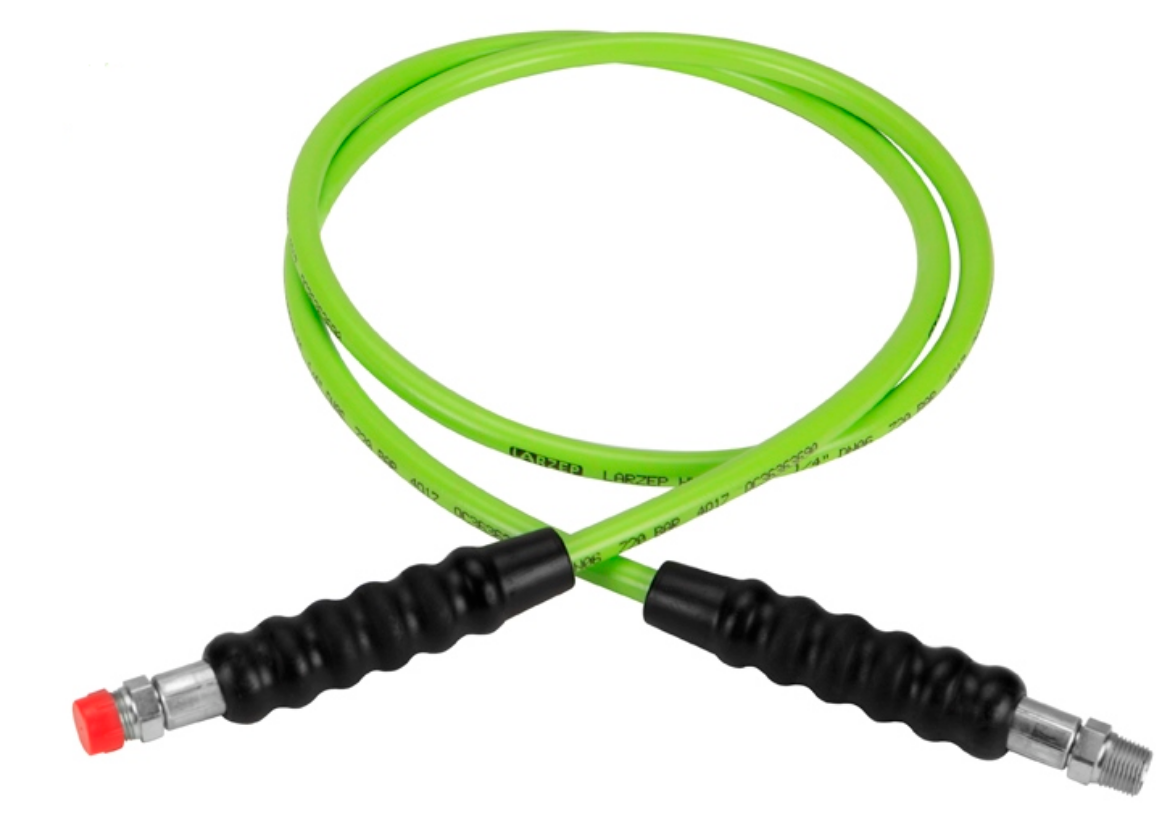

Description
- 4:1 Safety factor
- 3/8"-NPT thread on each end. Can be supplied with couplers on one or both ends.
- Internal Diameter 6,4 mm; Oil Capacity: 35 cm3 per metre.
- Minimum bending radius: 115 mm
- Apply 2 rounds of teflon around all 3/8" NPT threads of the system, in the thread direction, leaving the first thread uncorvered to prevent the tape breaking and entering the hydraulic system. torque: 80Nm.
- WARNING: Never disconnect the hose when the system is pressurized. Never exceed the maxiumum working pressure of the hose.
Specifications:
Maximum Operating Pressure (bar) - 700
Internal Diameter (mm) - 6,4
Length (m) - 3,0
End One Assembly - 3/8: -NPT
End Two Assembly - 3/8" -NPT
Weight (kg) - 1.5 kg
