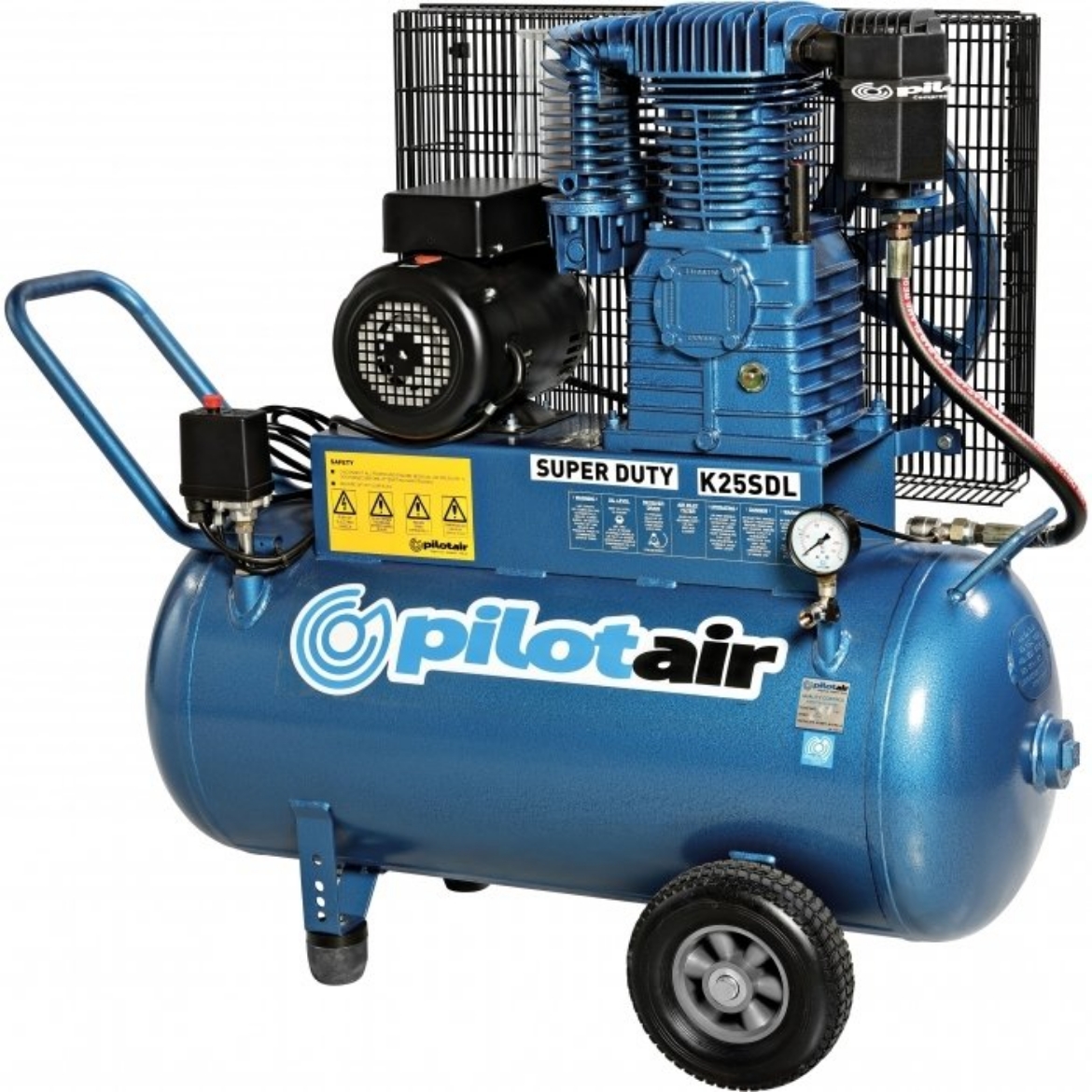

K25SDL - Pilot Super Duty Air Compressor
100 Litre Tank / 3hp
13.1cfm / 371lpm Piston Displacement
Overview
The Pilot Air “Classic K” Series. Setting the industry standard for over 40 years.
Features
- Australian designed and built
- Industrial grade hammer-tone enamel finish
- Oversize twin cylinder pump de-rated for ultra long life & reliability
- Cast iron cylinder 2-stage pump
- Electric motor overload
- Warranty: 3 Years on pump, 1 Year on all other components
ORDER CODE | C511 |
MODEL | K25SDL |
Drive Type | V-Belt |
(CFM / LPM)Piston Displacement | 13.1 / 371 |
(CFM / LPM)Free Air Delivery | 10.2 / 289 |
(Type)Cylinders | Twin |
(kPa)Max. Pressure | 1100 |
(PSI)Max. Pressure | 160 |
(Litre)Air Receiver Tank Size | 100 |
(rpm)Motor Speed | 2800 |
(kW / hp)Motor Power | 2.25 / 3 |
(V / amp)Voltage / Amperage | 240 / 15 |
(kg)Nett Weight | 100 |
