Wheel Dolly
- Working Load Limit 800kg
- Maximum Lift 500mm
- Lifting arms lowered height 115mm
- Lifting arms raised height 615mm
- Width of roller arms closed 440mm
- Width of roller arms open 680mm
- Overall Width 980mm
- Overall Depth 1060mm
- Overall Height 1070mm
- Net weight 101kg

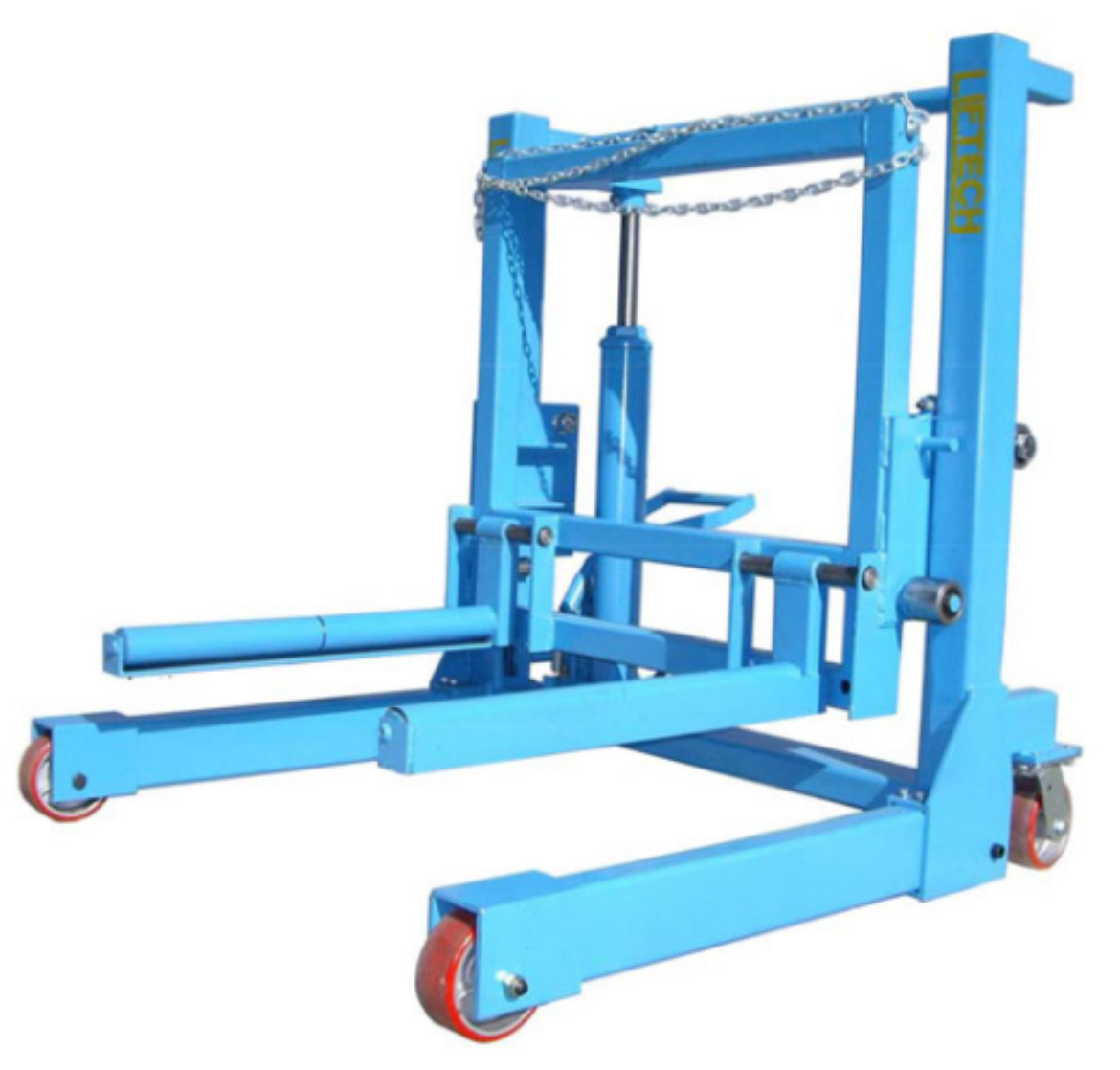

The LIFTECH Wheel Dolly makes the removal and refitting of dual or super single wheels effortless.
- Heavy Duty wide frame & lifting carriage
- Offset hydraulic unit allows working access to wheels during removal & refit
- Hydraulic unit has foot pump & foot release for hands free operation
- Extra lifting height enables wheels to be placed on balancers or other machines
- Polyamide coated fixed front wheels & caster rear wheels for better maneuverability
- 3 position adjustment on lifting arms
- Angle iron reinforced lifting arms
- 4 rollers per side for smoother wheel rotations
- Safety chain for securing load
- 2 Stud & Nut trays
