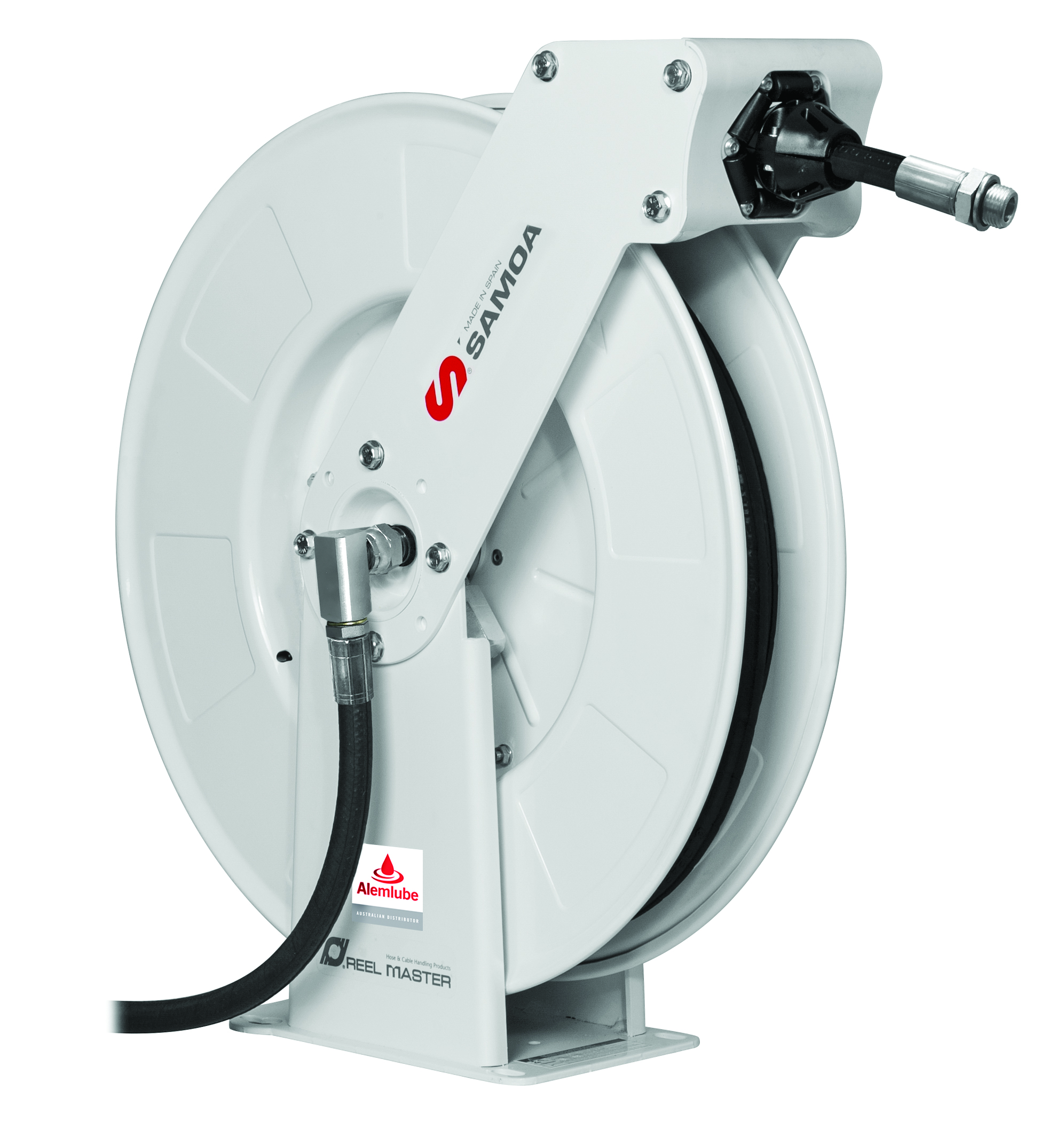

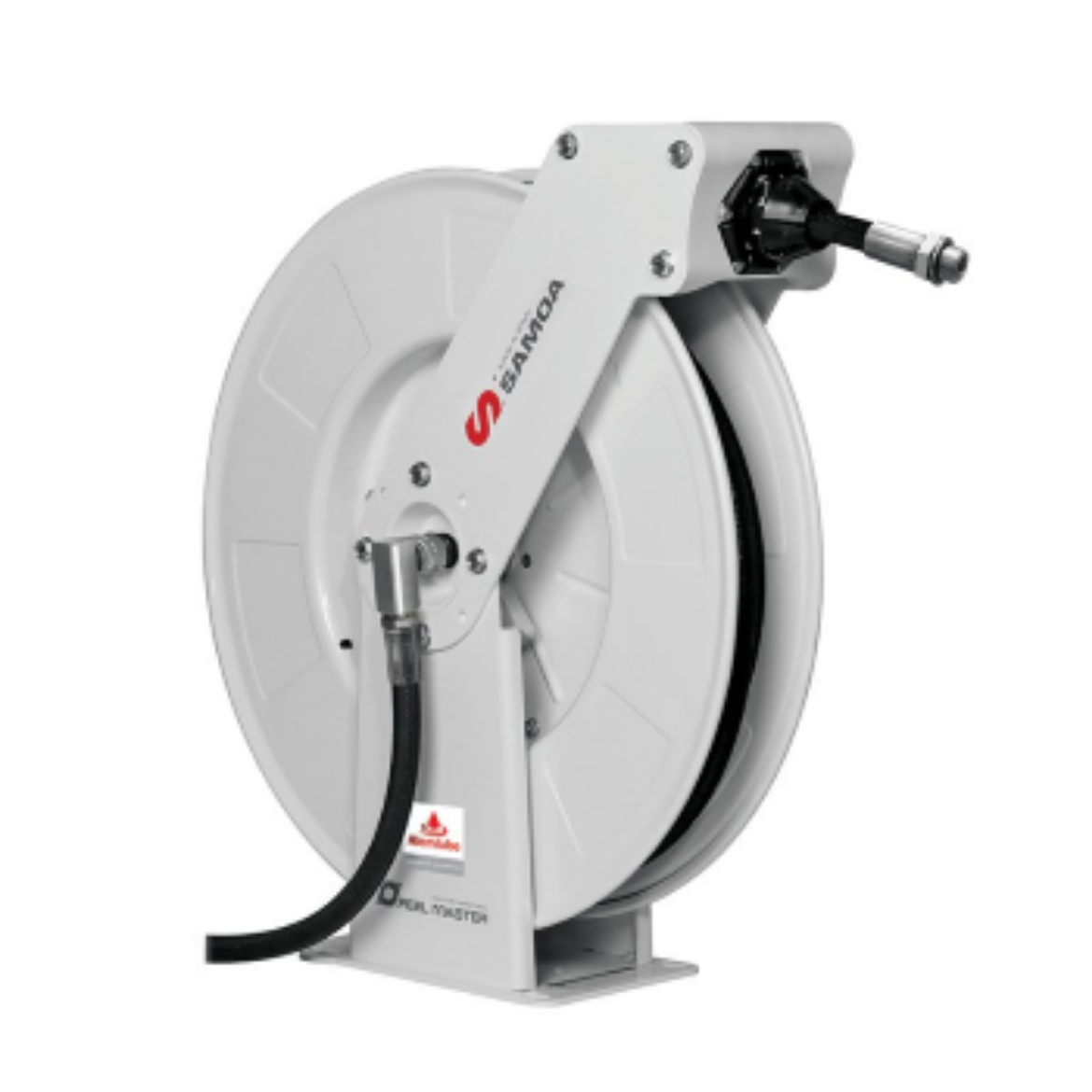

The Samoa 504351 spring rewind grease hose reel is a full metal heavy duty double pedestal hose reel that has been
designed and constructed to withstand regular and robust use in intensive applications.
The fatigue resistant steel spring provides years of durable, trouble free performance and even load when pulling and
recoiling the hose.
Torque load on the spring is reduced due to the spool being mounted on two permanently lubricated and sealed ball
bearings resulting in smooth retraction and the large effective radial latching area assists in easier operation.
The Samoa 504351 spring rewind hose reel guide arm can be placed in different positions to accommodate any method of
mounting and its narrow footprint allows accommodating more reels on the same surface in the available space.
Supplied complete and ready to use with 15 metres of 3/8” ID R1 delivery hose and a 0.8 metre lead in hose, the 504351
is ideal for applications relevant to car and truck dealerships, automotive workshops, lube trucks, mining & construction,
railroad and mass transit vehicles and general manufacturing. It can be floor, wall, ceiling or tank mounted.
PRODUCT SPECIFICATIONS, FEATURES AND BENEFITS
- Maximum working pressure of 5,800psi (400bar)
- 3/8” BSP (m) inlet and 1/4” BSP (m) outlet threads
- Supplied complete with 15m x 3/8” ID R1 hose and 0.8m inlet hose
- Full 3/8” ID port, shaft and swivel
- Narrow footprint measuring 168mm wide
- Heavy duty double pedestal construction
- Large effective radial latching area
- Versatile positioning of hose guide arm
- Floor, wall, ceiling or tank mountable
- Weight of 26kg
