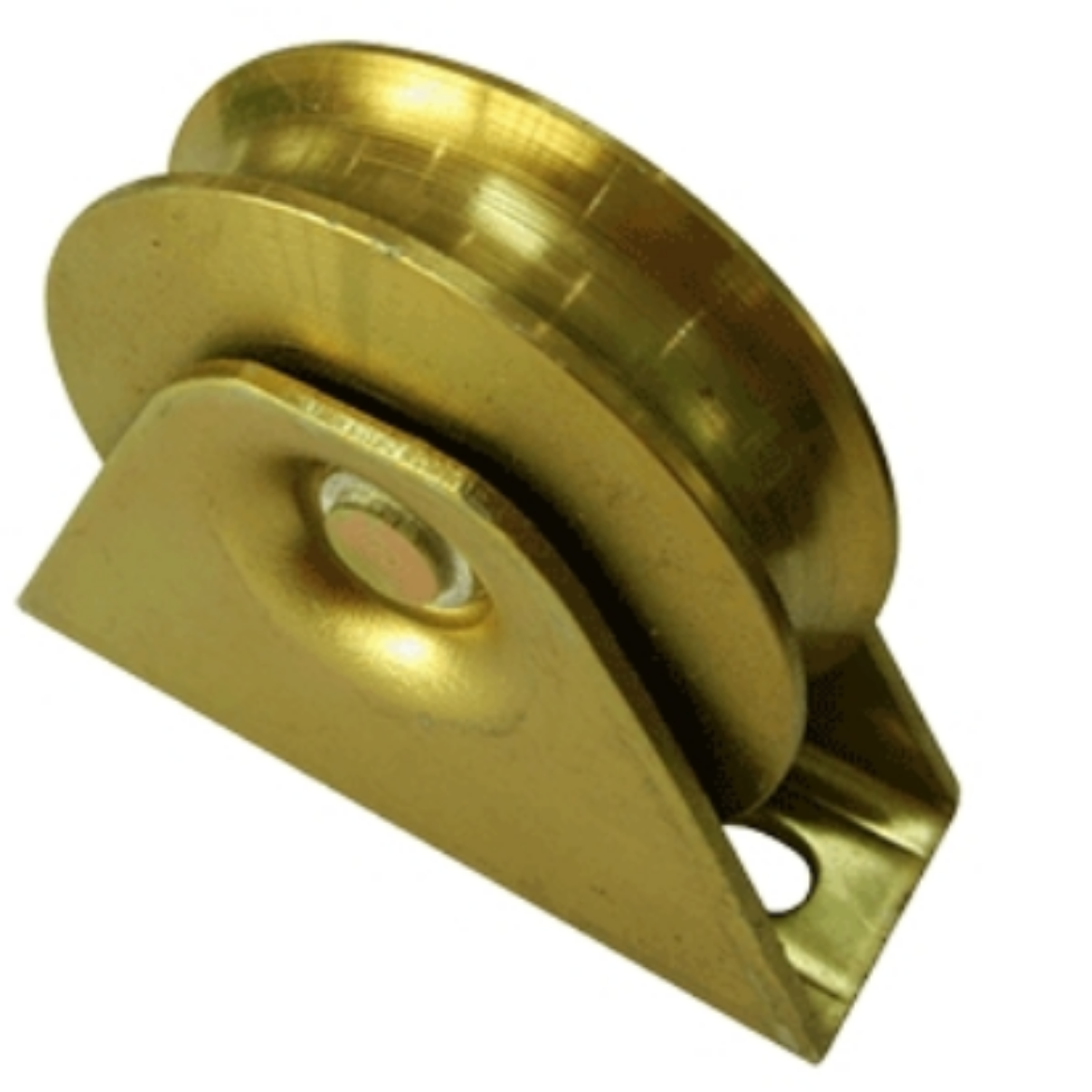

78mm Bottom Mount Gate Track Wheel (GTR001)

Richmond gate track wheels, used on both automatic sliding gates (electric sliding gates) and manual sliding gates, are precision machined to ensure a smooth and consistent rolling action on the gate track. For the gate track to suit, see GTR010. Richmond gate track wheels are zinc plated to protect from rust. The double bearing design of our gate track wheels ensures a longer life and increases load capacity. The frame of these bottom mount gate track wheels is design to be bolted flat to the bottom of the gate. For a recessed, low profile design see our recessed gate track wheels.

• Wheel width (A): 23mm
• Bottom Gate Height (B): 85mm
• Track Profile Diameter (C): 20.5mm
• Wheel Outer Diameter (D): 78mm
• Overall Width (E): 35mm
• Between Hole Centers (F): 70mm
• Overall Length (G): 100mm
• Capacity: 250kg
• Wheel Grove Diameter (D1): 60
