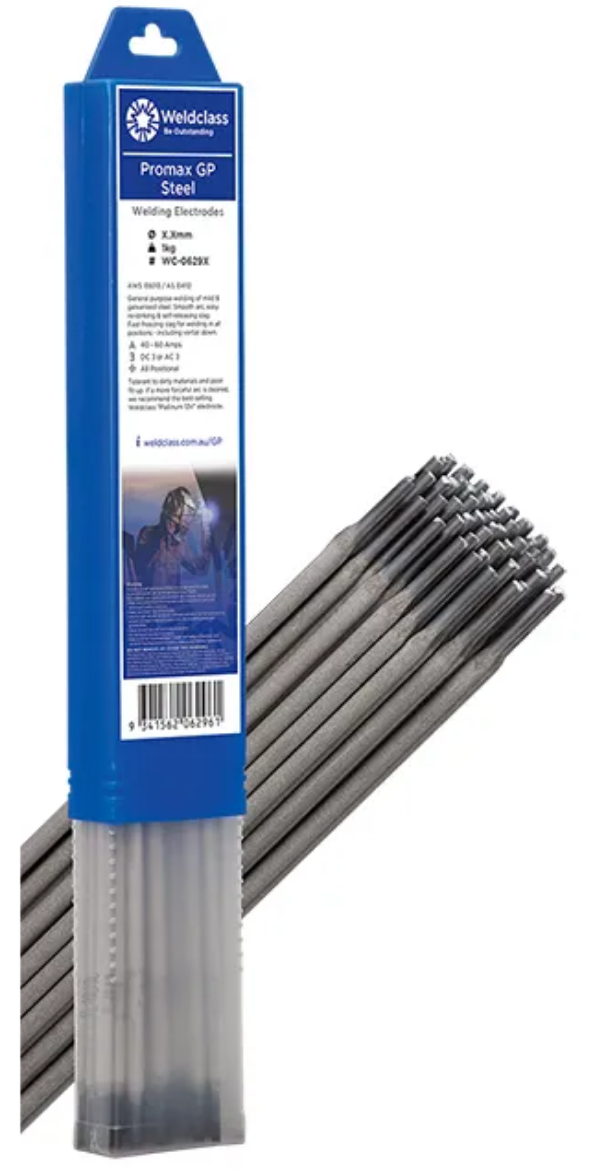

The Weldclass Promax GP is an easy-to-use, all-positional welding rod for mild & galvanised steels, supplied in a 1kg re-usable convenience pack to keep electrodes in good condition. Very smooth arc, easy re-striking & easy slag removal. Fast-freezing slag formula, for welding in all positions including vertial down. Tolerant to dirty materials and poor fit-up. Available in 2.0mm, 2.6mm & 3.2mm.
KEY FEATURES
> Smooth Arc, Easy Striking, Easy-to-remove Slag
> User Friendly: Tolerant to Dirty / Rusty Steel & Poor Fit Up
> All-Positional: Fast-Freezing Slag for fillet & butt welding in All Positions, including Vertical Down
> Convenient 1kg re-usable pack
APPLICATION INFO:
> Ideal General Purpose electrode for fabrication, repair, fencing, light structural & more
> For Mild steel, Galvanized, Plate, Sheet & Tubular/RHS Steel
OPERATING INFO:
> Polarity: DC± or AC± (electrode + or -)
> Positions: All-positional
> Minimum recommended OCV (open circuit voltage): 45V
CLASSIFICATIONS:
> AWS specification A5.1 E6013
> AS/NZS 4855 – B-E43 13 A (Previous Classification AS/NZS 1553.1 E4112-0)
TYPICAL PROPERTIES OF ALL WELD METAL
> Tensile strength 490 Mpa (N\mm2)
> Yield strength 430 Mpa (N\mm2)
> Elongation 26%
> CVN Impact 82J @ 0c
> Composition %: C0.07 Mn0.45 Si0.41 P0.018 S0.010
FAQs:
How many rods per pack/KG ?
2.6mm = approx. 50 rods per KG
3.2mm = approx. 33 rods per KG
