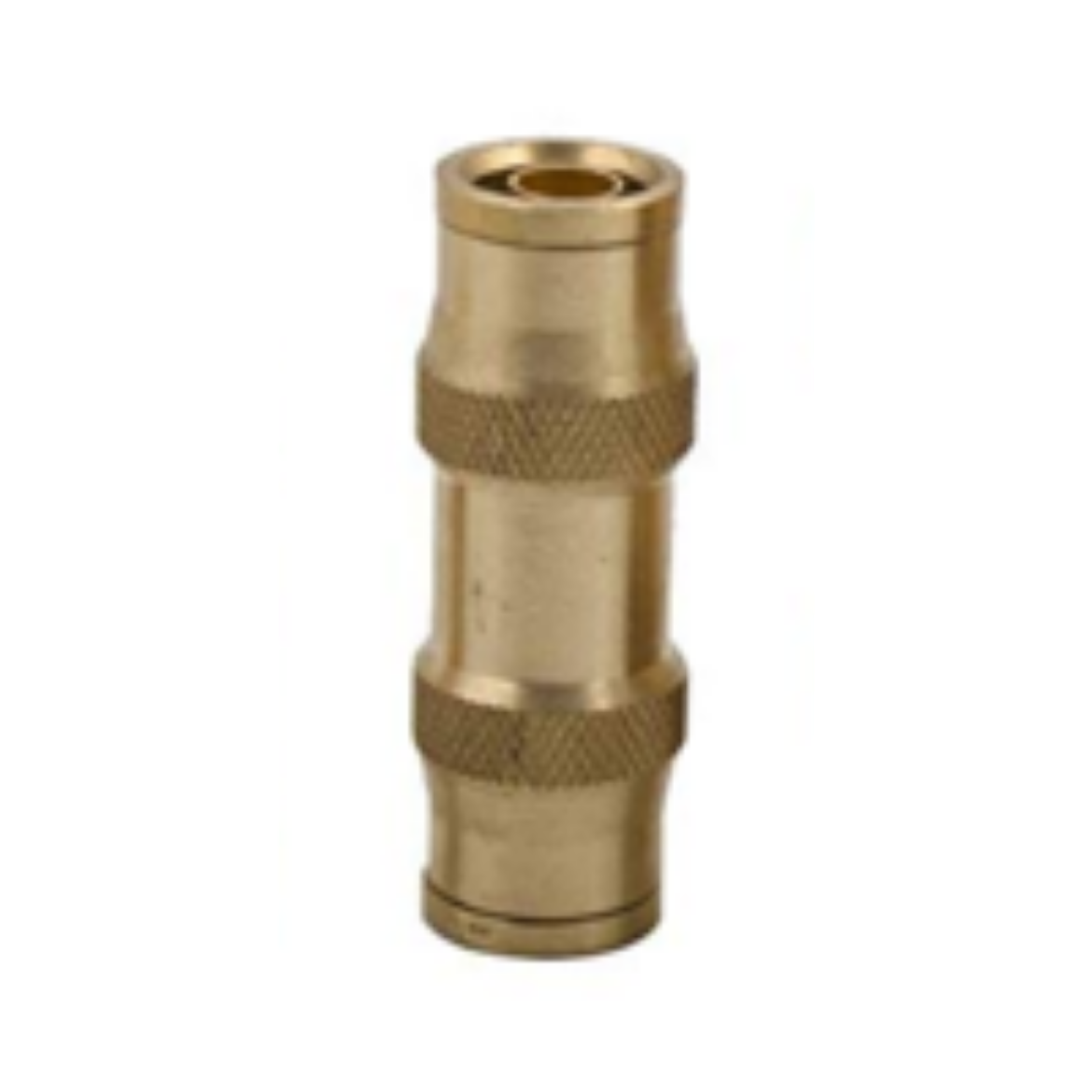

The 1862 3/16" Union Airbrake Quick-Fit (35-1862-3) is a fitting used in air brake systems. Here are some key details:
- Type: Quick-Fit Union
- Size: 3/16" Tube OD x 3/16" Tube OD
- Material: Brass (CA360)
- Application: Air brake systems
- Standards: D.O.T. compliant, meets SAE J1131 and J2494-3 standards
Features:
- Quick connect: Simply push tubing in, no tools required
- Full-flow design: Provides up to 60% more flow area than conventional fittings
- Pre-applied sealant on all male pipe threads
- Temperature range: -40°F to 200°F
- Maximum pressure: 250 PSI
This fitting is designed for reliable and efficient connections in air brake systems.
