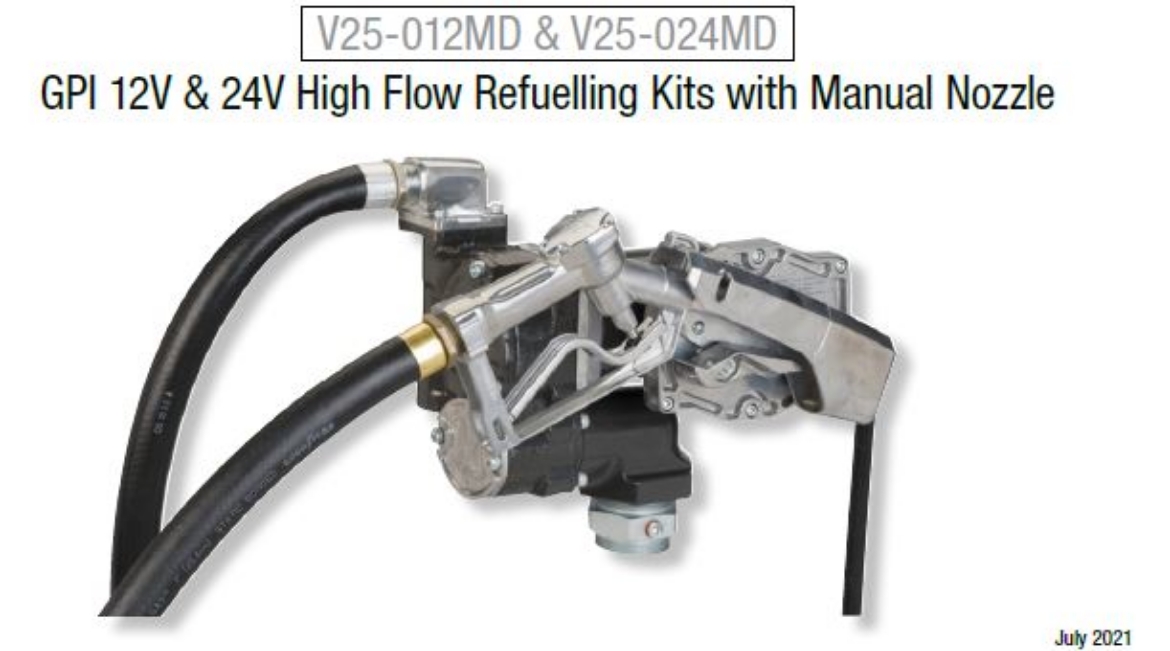

The GPI USA made 12V & 24V High Flow 94 L/min Refuelling Kits with manual nozzle are the ideal kits for rapidly.
dispensing diesel fuel in the agriculture, construction, and industrial sectors.
Modular design allows you to easily attach a filter, meter or both and can even be used with a hose reel.
Built to last, the V25-012MD and V25-024MD refuelling kits are manufactured with superior components for long-lasting, trouble-free performance to prevent rust and handle extreme weather conditions.
Model V25-012MD
Housing Material Cast Iron
Pump Rate 94L/min
Duty Cycle Intermittent, 30min ON/OFF
Suction Lift Up to 4.5m
Operating Temperature -29°C to 52°C
Maximum Surface Temperature 160°C
Operating Pressure 20psi (1.37bar)
Input 12V 24V
Motor 1620 RPM, 41hp
SPECIFICATIONS, FEATURES AND BENEFITS
- Flow rates of up to 94L/min
- Complete with 5.5m x 1" hose, 1m telescopic downtube
- & 5.5m 10/2 AWG* power cable
- Equipped with ‘Safe Stop’ 30 minute auto power down
- with easy reset
- Built in fuel filter strainer
- Cast iron pump head & carbon vanes
- Lockable nozzle holder assists with fuel security
- 20psi pressure – can be used with a hose reel
- Quick-fit modular – easily attach a filter, M30 mechanical
- meter, or both
- Eliminate dangerous leaks with flanged connections, O-rings,
- & meter mag drive
- Internal check valve with “Perfect Prime” – keeps pump head
- primed & ready
- New drip catch helps keep tanks & trucks clean
