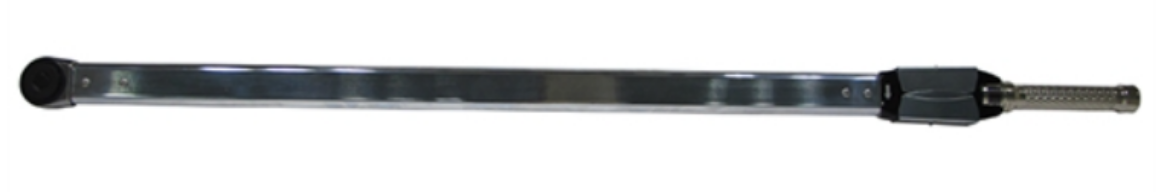

Pro 1500, 1", Ratchet Production 'P' Type (Dual Scale)
'P' Type Torque Wrenches are designed for the production environment where they will be set and then dedicated to a particular application. There is no scale, the wrench must be set against a Pro-Test or similar instrument.
- Accuracy: ±3%
- Operates between:
- 4400.00 - 13200.00 lbf·in
- 370.00 - 1100.00 lbf·ft
- 500.00 - 1500.00 N·m
- Non length dependent. Extension handle (weighs additional 1.7kg) can be used to reduce operator effort (handle supplied as standard with Model 800, 1000 and 1500)
- Positive 'click' can be heard seen and felt.
- Low weight - Model 1000 just 5.8 kg.
- Fine 60 tooth ratchet allows the wrench to be used in confined areas.
- On request ‘P’ Type wrenches can be set, marked with the setting and certified for production line applications requiring a sealed torque setting. Only if a pre-set has been requested will the tool be supplied with a Declaration of Conformance
Technical Specifications:
- Length: 1570 mm
- Square Size: 1"
- Torque Radius: 1423 mm
- Weight: 6.7 Kg
- Ratchet Teeth: 60
- Ratchet Type: push-through
- Length (inc. Ext. Handle): 2070 mm
