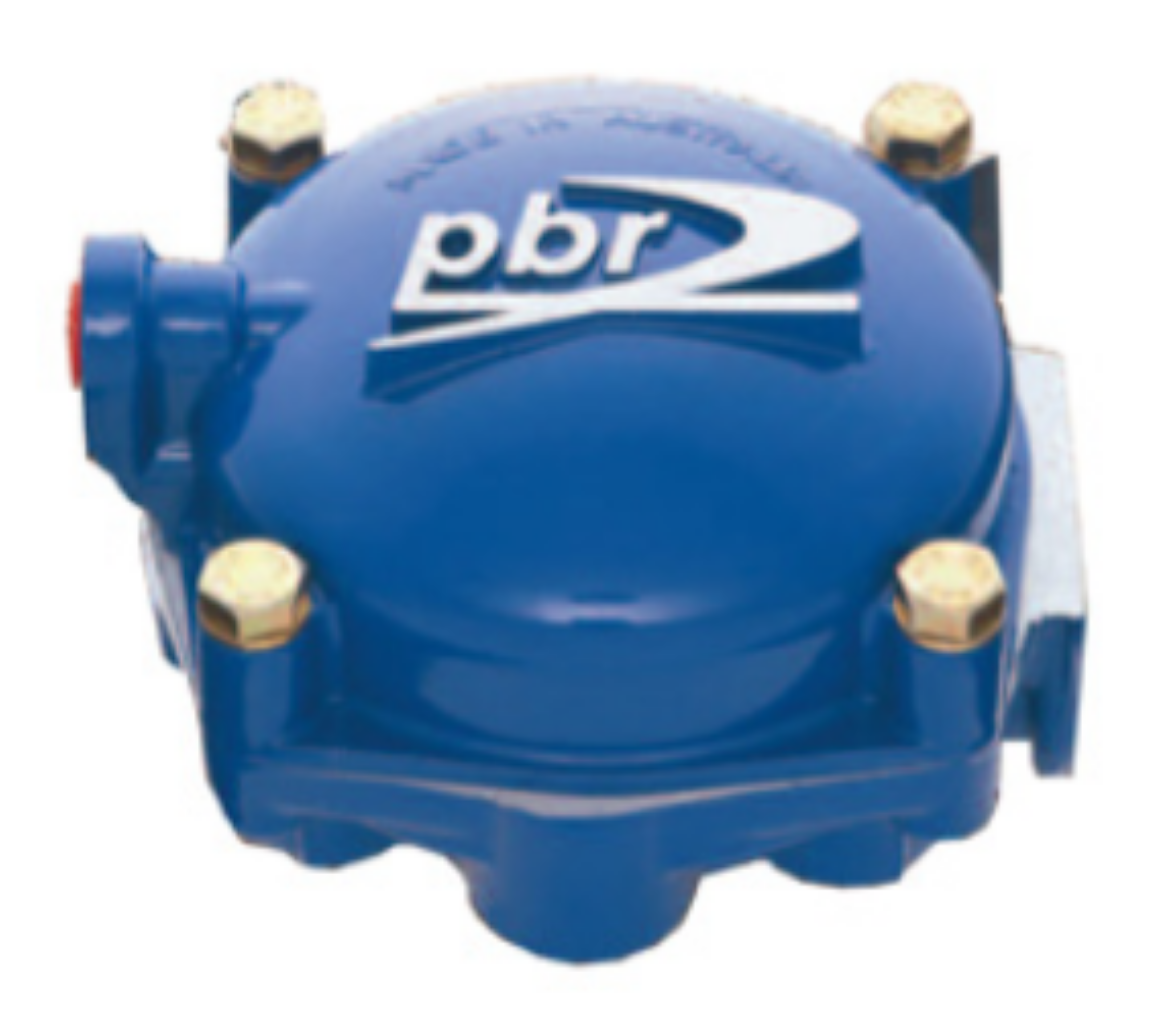

The advantage of CA700 over standard relay valves:This unique valve provides virtually instantaneous system “take-up” to provide near optimum braking times between the prime mover and trailer. This is achieved by minimising the time for the valve to reach its balanced state through controlling pressure differences across the relay piston surfaces.
- Supply Port: 1/4"NPT
- Delivery Ports: 3/8"NPT
- Ports: 6
- Tank Mount: 3/4"NPT
- Pressure predominance - provides rapid system ‘take-up’byamplifying foot valve pressures
- Provides brake “balance” between truck and trailer during lowpressure brake applications
- Assists in even and improved brake lining life
- Easy overhaul
- ADR38/02 compliant
- Fully interchangeable with CA47
- Colour Coded for valve identification and maintenance simplicity
