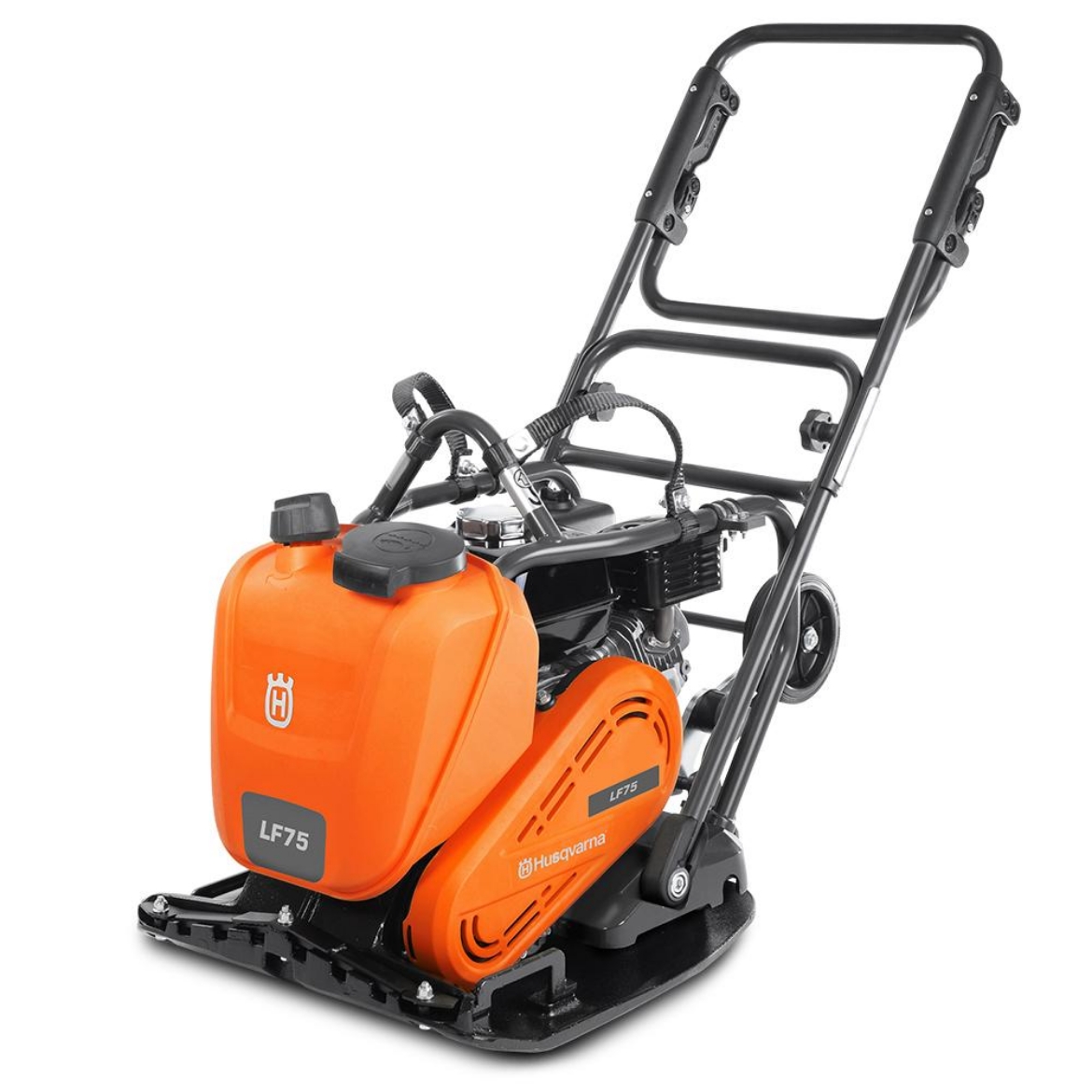

LF 75 LAT is a fast-operating forward plate compactor, designed for efficient compaction of asphalt and soil. Ideal for repair jobs and maintenance work, such as driveways and parking lots. The large water tank features an oversized cap to enable less frequent and fast refills. It is easy to clean, leaves no marks on the pavement and uses whatever water is available on-site.

Features:

• The large corrosion-free water tank and smart water distribution system enable you to work longer with less stops for re-filling
• The efficient, patented low-vibration handle lowers the vibration levels below 2m/s², allowing you to work for hours without becoming fatigued or exceeding any regulatory threshold limit values
• Equipped with transport wheels for effortless transportation.
• The watering system, that prevents the bottom plate from sticking to the hot asphalt, uses only a minimum of water thanks to the easily adjustable water flow.

Specifications:

• Power output: 3.6kW
• Engine/motor: Honda GX160
• Operating speed: 24 m/min
• Vibration Frequency: 95Hz
• Fuel : Petrol
• Plate width: 500mm
• Plate length: 570mm
• Weight: 97kg

ENGINE

• Motor/engine model:GX160
• 0Output power (As rated by the engine/motor manufacturer): 3.6 kW
• Starter: Recoil
• Exhaust emissions (CO2 EU V): 757 g/kWh
• Power source: Petrol

PRODUCT DATA

• Compaction application: Asphalt and Soil
• Centrifugal force: 15 kN
• Speed: 24 m/min

DIMENSIONS

• Plate Width: 500 mm
• Product size width: 500 mm
• Weight (complete product w/o side packed articles): 97 kg

SOUND AND NOISE

• Sound power level, guaranteed (LWA): 105 dB(A)
• Sound pressure level at operators ear: 103 dB(A)
