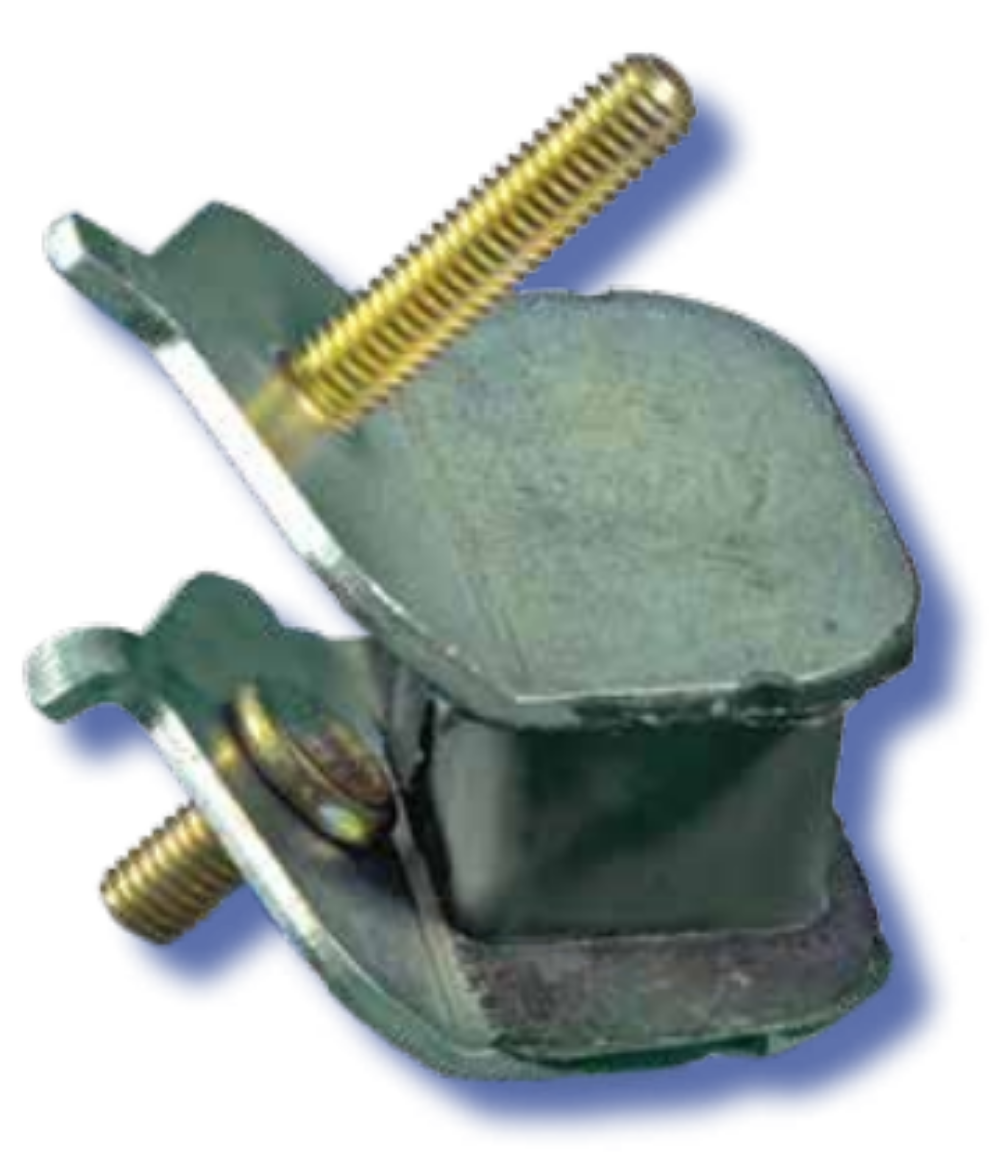

The V-shaped Generator supports are comprised of two symmetrically-tilted metal parts with a screw on each side.

The V-shaped generator mounts render it possible to make installations which are more elastic than the ones usually made with cylindrical or bobbing mounts. This makes it possible to achieve lower frequency and consequently better vibration isolation. Stability is enhanced when two are installed, symmetrically opposed.

They have two different length screws which facilitate the assembly of the the engine to the chassis. They have two “anti-turn” tabs which stop the mount from turning when strong tightening torque is applied (very frequently) with pneumatic tools. They are supplied in 2 hardnesses to adapt to different load ranges. They provide vibration attenuation of above 90% in diesel or petrol singlecylinder engines running at 3000 rpm.

Very low-load engines requiring high levels of isolation. Portable gen sets, compressors, motor pumps, etc.
