316L series Stainless-Steel welding rods for general purpose welding of matching 316, 316L & other common stainless steels, including; 300 series, 301, 302, 304, 304L, 3Cr12, 409, 444. All-positional (except vertical-down), smooth arc, low spatter, excellent slag control/detachability and high quality weld appearance. Classification: AWS E316L-16.
Available in 1kg re-usable packs & blister/handy packs, in 2.0mm, 2.6mm or 3.2mm.

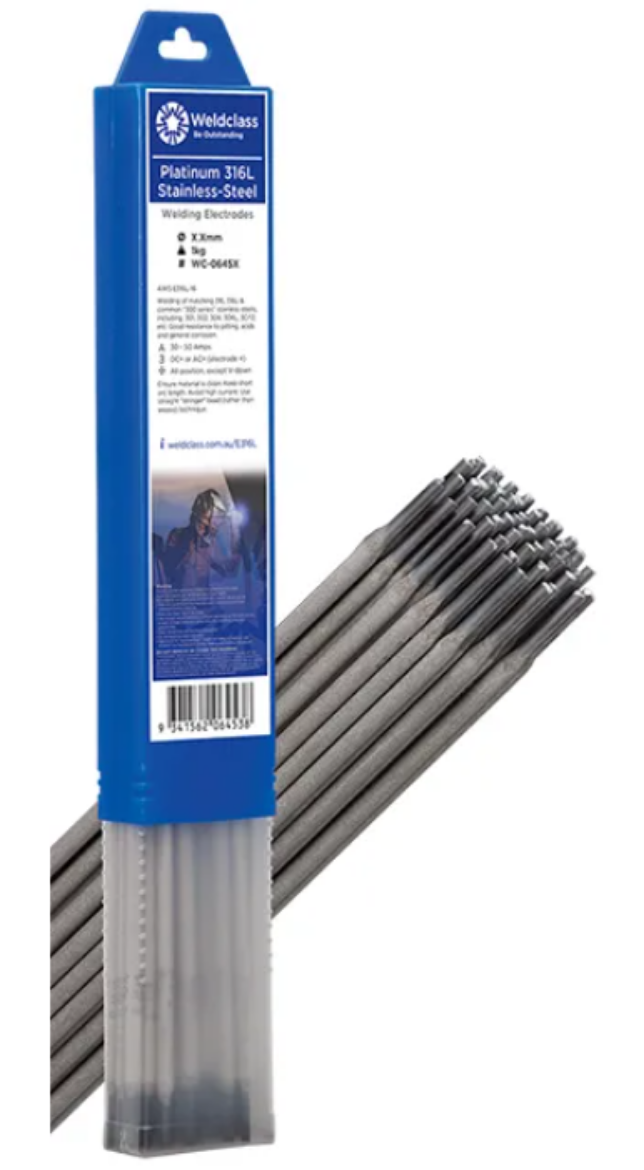

- Platinum 316L 3.2mm 1kg Re-Usable Pack
KEY FEATURES
> For general purpose welding of common, matching stainless steels
> Good resistance to pitting, acids and general corrosion
> All positional, except vertical-down
> Smooth arc, low spatter, excellent slag control/detachability and high quality weld appearance
> Easy to use & suitable for low OCV (open circuit voltage) welding machines (>45V)
APPLICATION INFO:
> Deposits Molybdenum bearing, 19% Cr / 12% Ni / 2.3% Mo filler metal to meet the requirements for welding AISI type 316 and 316L stainless steel in critical applications
> For welding of matching 316, 316L & other common stainless steels, including; 300 series (301, 302, 304, 304L, etc), and ferritic stainless steel alloys
such as 409, 444 and 3Cr12
> Commonly used in; marine, wine making, dairy & similiar industries
OPERATING INFO:
> All welding positions, excluding vertical down
> Polarity: DC+ or AC+ (electrode +)
> Minimum recommended OCV (open circuit voltage): 45V
> Avoid high / excessive current
> Use straight "stringer" bead (rather than weave) technique
CLASSIFICATIONS:
> AWS A5.4 E316L-16
TYPICAL PROPERTIES OF ALL WELD METAL
> Tensile strength 610 Mpa (N\mm2)
> Yield strength 400 Mpa (N\mm2)
> Elongation 38%
> CVN Impact 75J @ -20c
> Composition %: C0.025 Mn0.70 Si0.70 Cr18.50 Ni12.0 Mo2.30
> Ferrite Number: 3.0-7.5 FN
FAQs
How many rods per pack/KG ?
2.6mm = approx. 50 rods per KG
3.2mm = approx. 33 rods per KG
