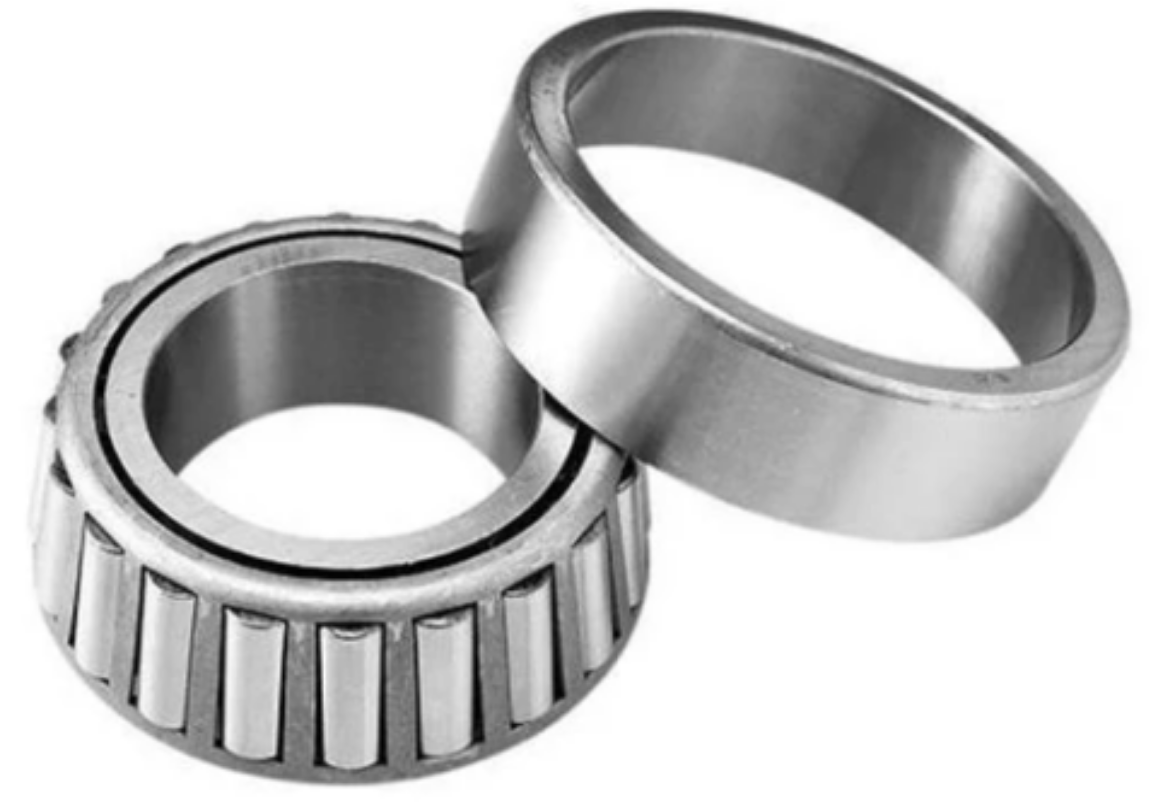

This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft.
Specifications
Series
| 2700 |
Cone Part Number
| 2788 |
Cup Part Number
| 2720 |
Design Unit
| Inch |
Cage Material
| Stamped Steel |
Related Assembly Number(s)
| 2788-90014 |
Dimensions
d - Bore
| 1 1/2 in38.1 mm |
D - Cup Outer Diameter
| 3 in76.2 mm |
B - Cone Width
| 1.0100 in25.654 mm |
C - Cup Width
| 0.7500 in19.050 mm |
T - Bearing Width
| 0.9375 in23.813 mm |
