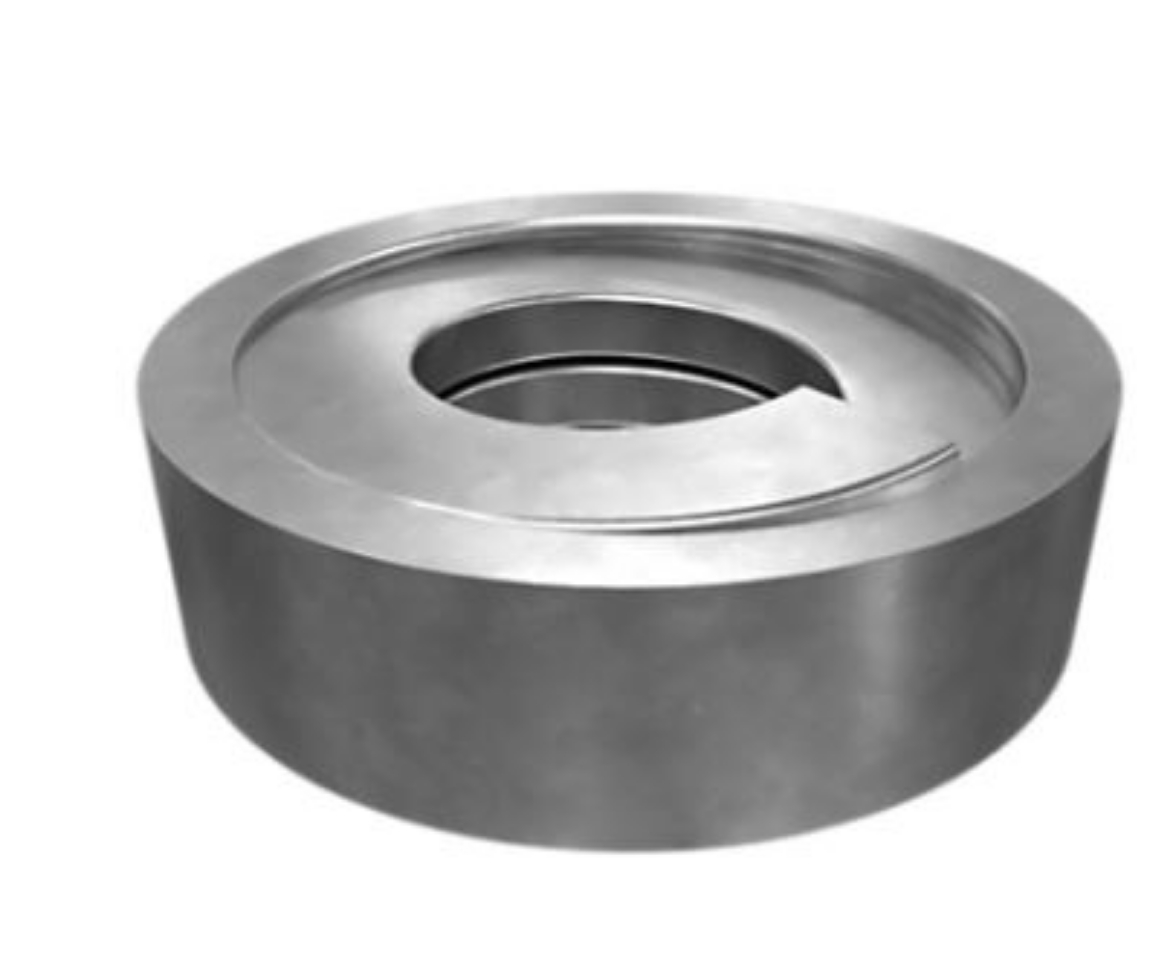

Heavy Duty Retainer (J350)

Attributes:

• The Heavy Duty Retainer is a two-coil retainer which grips the pin much tighter than the standard pin and retainer.
• Coil spring retainer absorbs side loads and eliminates retainer spread.
• The retainer can not rotate when positioned properly reducing wear from abrasives between the pin and retainer.
• System design has reduced pin walking in applications where tip life is very long, pin and retainer wear has occurred, or tip side loading has caused retainer spreading.
• Heavy Duty Retainer holder is ivory colored to distinguish it from the standard retainer assembly with a black retainer holder.

Recommended Application:

• Designed to fit J350 tips and adapters.
• Reference Pin part numbers: 114-0358, 135-9292, 135-9350

Width (mm): 40.64

Length (mm): 40.64

Height (mm): 12.70
