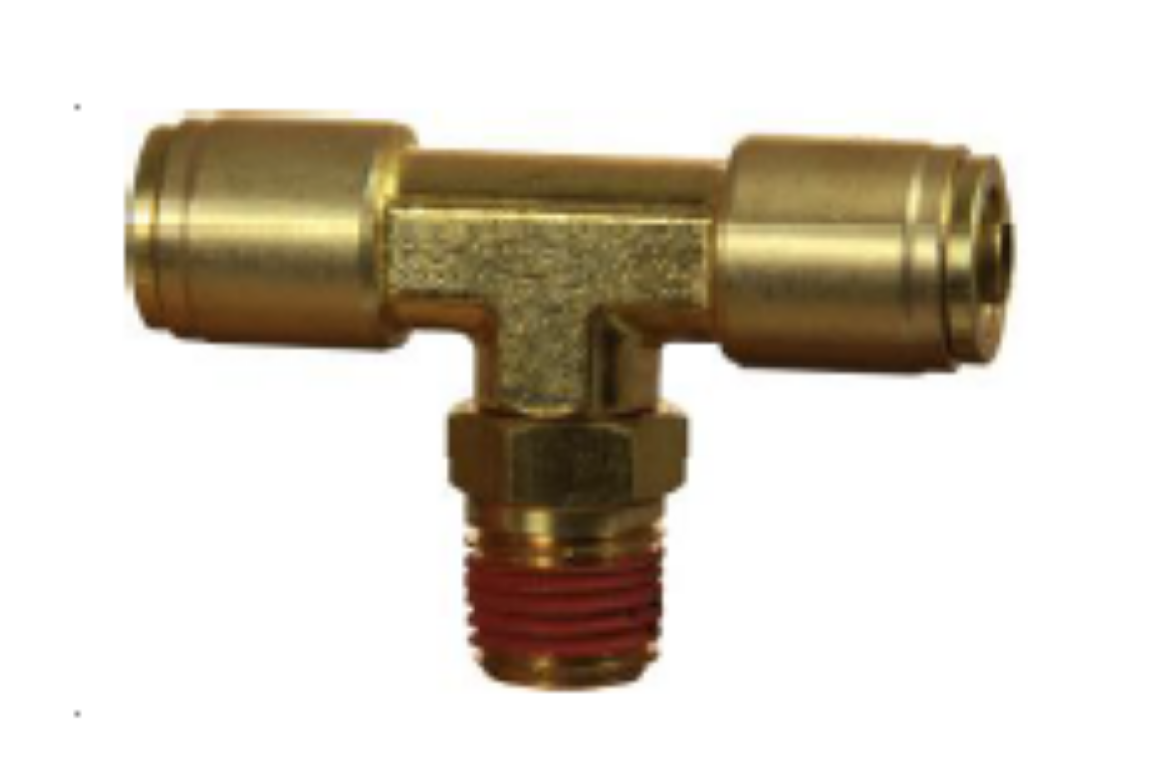

The 3/8" x 1/4" NPT Swivel Male Branch Tee Air Brake Push Fit (35-1872-06S) is a fitting used in air brake systems. Here are some key details:
- Type: Swivel Male Branch Tee, Push Fit
- Size: 3/8" Tube x 1/4" Male NPT
- Material: Brass and Composite
- Application: Air brake systems
- Standards: D.O.T. FMVSS 571.106, SAE J1131, and J2494-3 compliant
Features:
- Quick connect: Simply push tubing in, no tools required
- Swivel feature for easy positioning
- Engineered tube retention system for superior holding
- Temperature range: -40B0F to 225B0F
- Maximum pressure: 145 PSI
This fitting ensures reliable and efficient connections in air brake systems.
