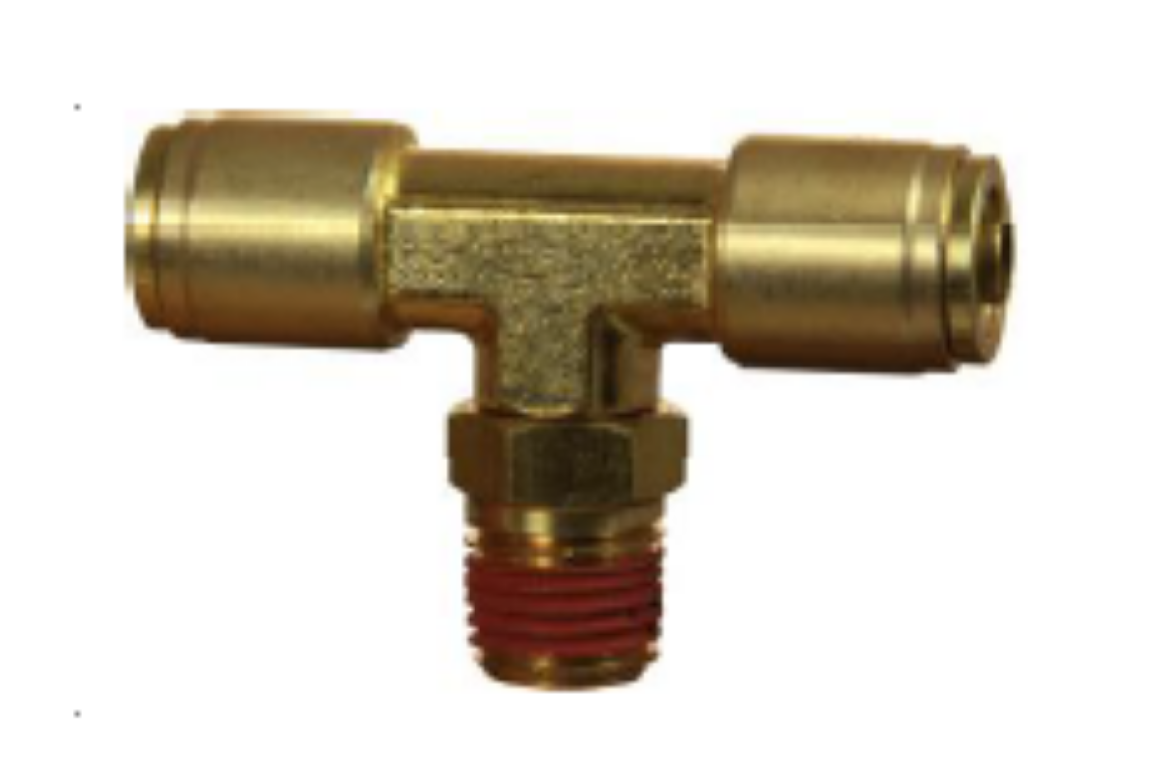

The 1872 1/4" x 1/8" Swivel Male Branch Tee Air Brake Push Fit (35-1872-4S) is a fitting used in air brake systems. Here are some key details:
- Type: Swivel Male Branch Tee, Push Fit
- Size: 1/4" Tube x 1/8" Male NPT
- Material: Brass
- Application: Air brake systems
- Standards: D.O.T. FMVSS 571.106 and SAE J1131 compliant
Features:
- Quick connect: Simply push tubing in, no tools required
- Swivel feature for easy positioning
- Full-flow design: Provides up to 60% more flow area than conventional fittings
- Pre-applied sealant on all male pipe threads
- Temperature range: -40B0F to 200B0F
- Maximum pressure: 250 PSI
This fitting ensures reliable and efficient connections in air brake systems.
