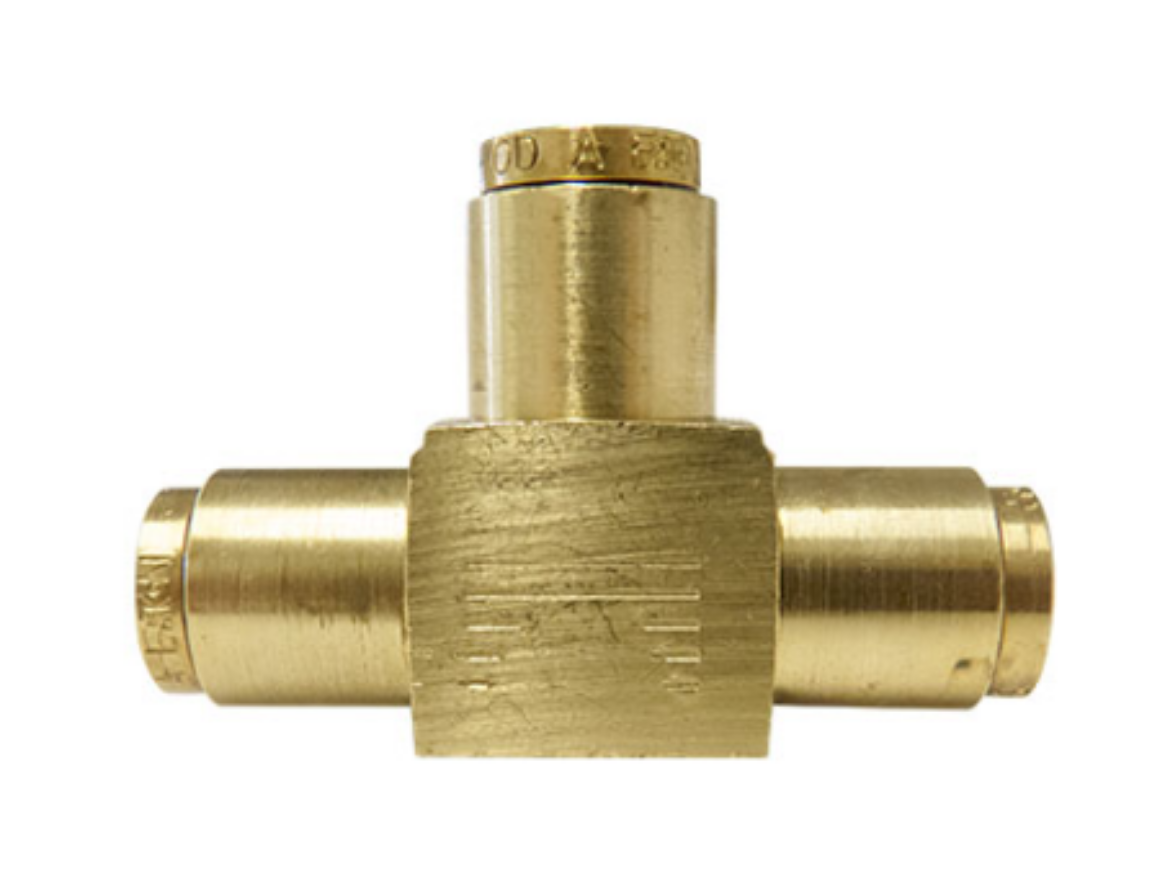

The 1/2" Tube Tee Push Fit Air Brake with the part number 35-1864-08 is a brass fitting designed for quick and secure connections in air brake systems. Here are some key details:
- Material: Brass (CA360)
- Connections: 1/2" OD tube
- Features:
- Quick Connect: Simply push the tubing in; no tools required
- Full-Flow Design: Provides up to 60% more flow area than conventional fittings
- Pre-Applied Sealant: Pipe sealant on all male pipe threads
- Applications: Ideal for use in SAE J844 Type A and B air brake systems
- Pressure Rating: Up to 250 psi
- Temperature Range: -40B0F to +200B0F
This fitting ensures reliable and efficient connections in various pneumatic applications.
